Steyr-Daimler-Puch ADGZ (M35 Mittlerer Panzerwagen) was originally developed as a heavy armored car for the Austrian army.
Total production: 52 cars

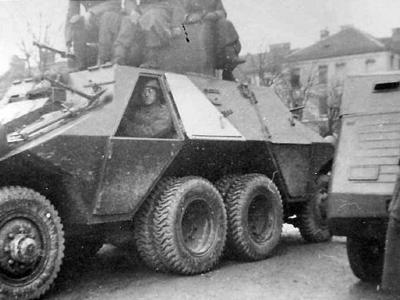

Panzerspähwagen ADGZ
ADGZ during field trials

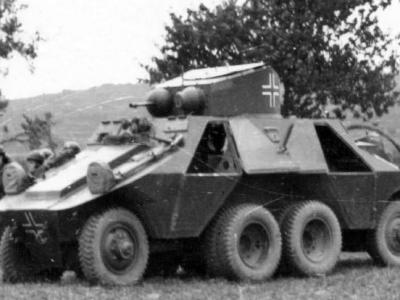

Steyr ADGZ car in german service

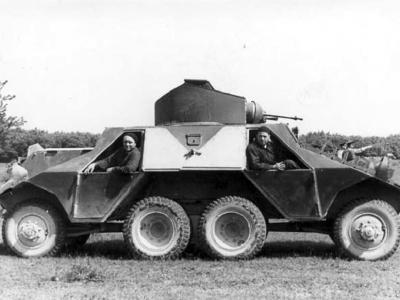

Austrian ADGZ during field trials

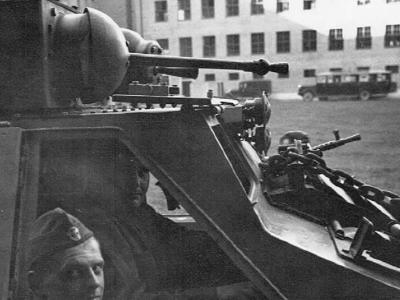

ADGZ – close-up view of turret

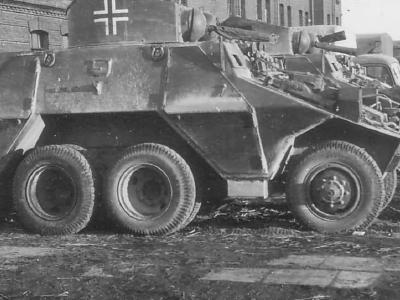

Steyr ADGZ cars in german service
ADGZ in german service

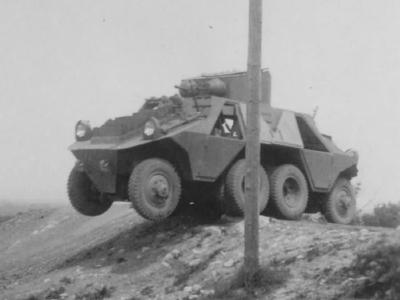

german armored car ADGZ

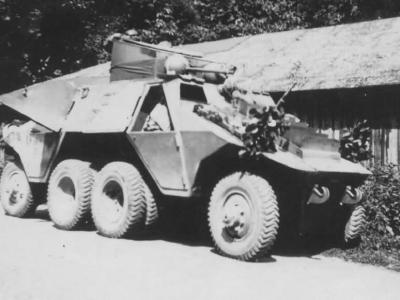

Steyr ADGZ heavy armored car
ADGZ german armoured car

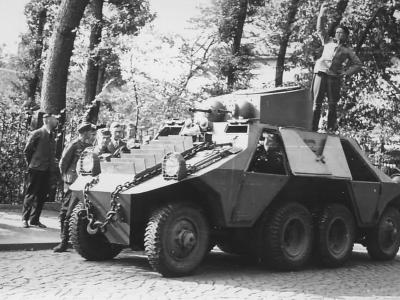

ADGZ armoured car

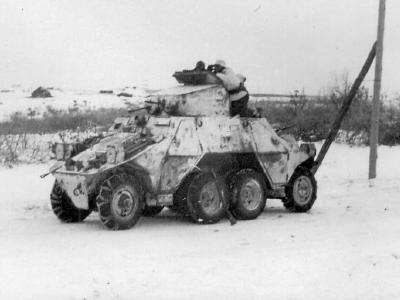

ADGZ winter camouflage

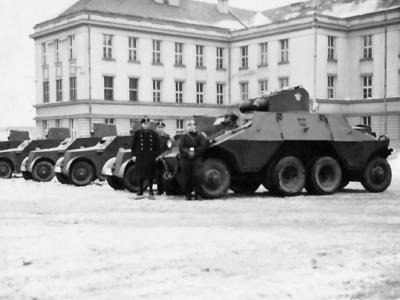

ADGZ armoured car 2
Steyr-Daimler-Puch ADGZ (M35 Mittlerer Panzerwagen) was originally developed as a heavy armored car for the Austrian army.
Total production: 52 cars
Specifications
crew | 4-6 |
lenght (mm) | 6260 |
width (mm) | 2160 |
height (mm) | 2560 |
axle track (mm) | 1450, 1950, 1450 |
wheel base (mm) | 1850 + 1050 + 1850 |
weight (kg) | 7500 |
payload (kg) | 1000 |
combat weight (kg) | 12000 |
armor | 11 mm |
main armament | 20 mm KwK 35 L/45, elevation: -12°, +18° |
secondary armament | 2-3 x 7,92 mm MG34 |
tire | 8,50-20 |
engine | Austro-Daimler M612, 6-cylinder, liquid-cooled, gasoline, 11946 cm3, 150hp |
fuel (l) | 200 |
fuel consumption (road / off road) per 100 km (l) | 90 / – |
max speed (km/h) | 70 |
range road/off-road (km) | 450 / – |
turning radius (m) | 14 |
fording (mm) | 1000 |
ground clearance (mm) | 275 |
climbing ability (degrees) | 54 |
Bibliography
- Horst Scheibert: German Heavy Reconnaissance Vehicles, Schiffer
