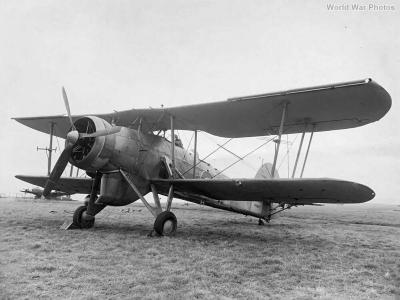

Swordfish V4689 with ASV radar

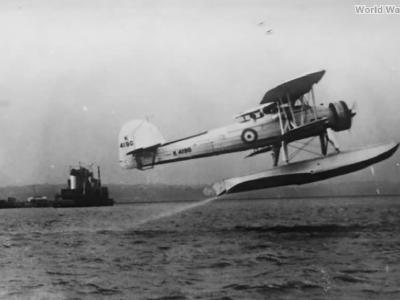

Swordfish K4190 take off
HMS Repulse

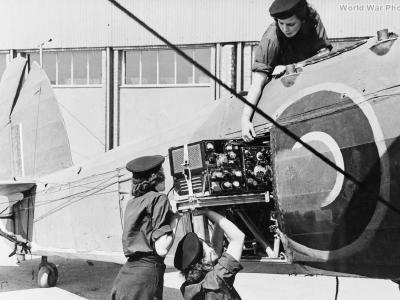

WREN Radio mechanics
Swordfish RATO

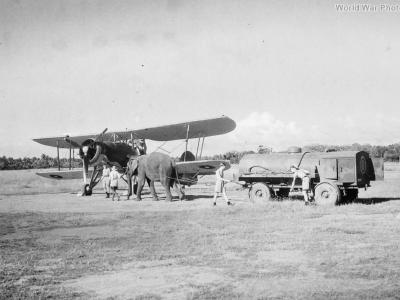

Swordfish Puttalam India 1944

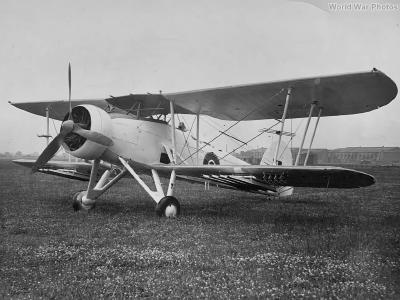

Swordfish Mk II

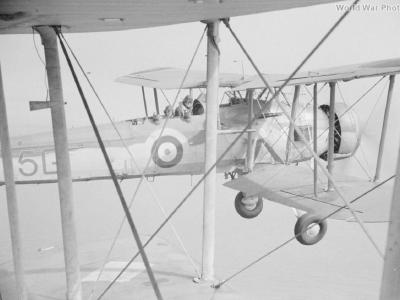

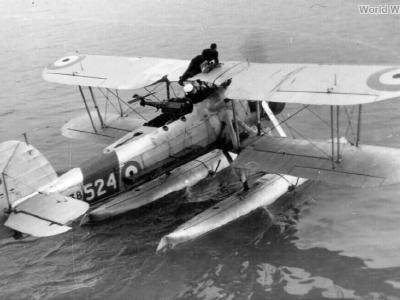

Swordfish L2738 810 Squadron FAA
Swordfish L7678 in flight

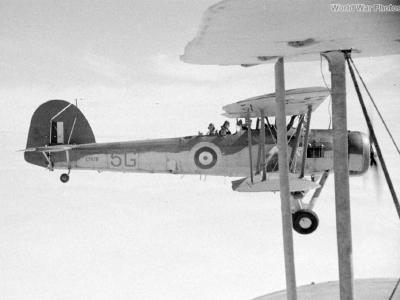

Swordfish L7678 off HMS Ark Royal

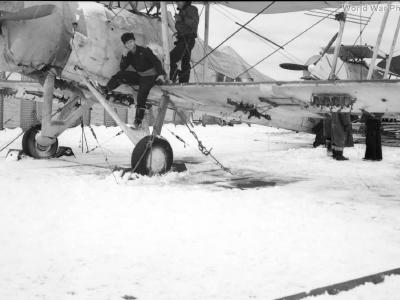

Merchant Aircraft Carrier HMS ANCYLUS 1943

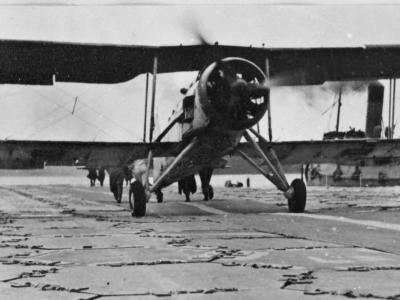

‘Lily’ floating deck trials
Swordfish of TTU Gosport
Swordfish L2732 at Manston June 1937

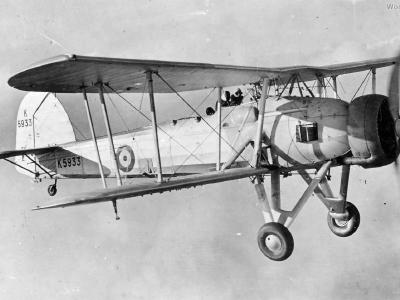

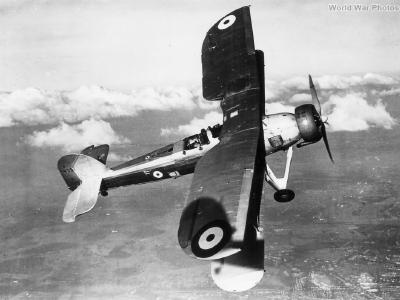

Swordfish K5933

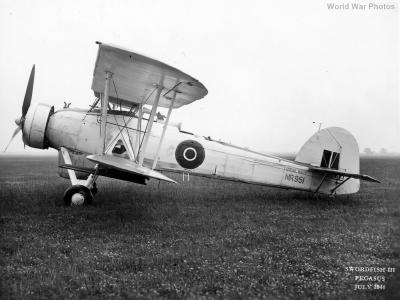

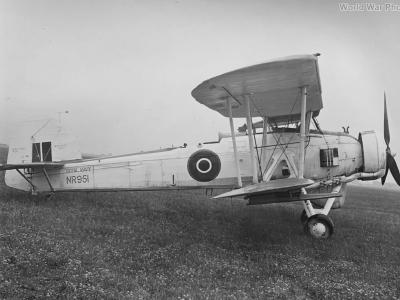

Swordfish III NR951 July 1944
Swordfish III NR951

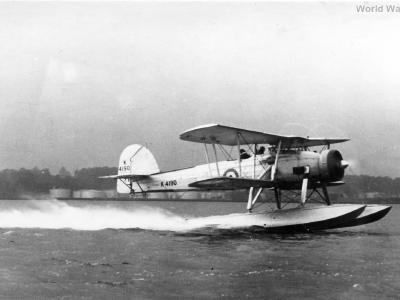

K4190 float trials in the Solent

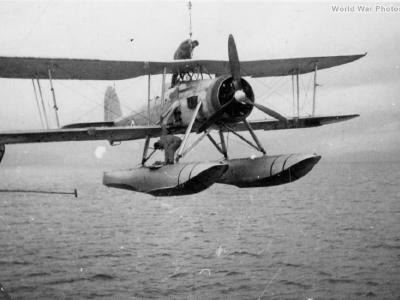

Swordfish being lifted

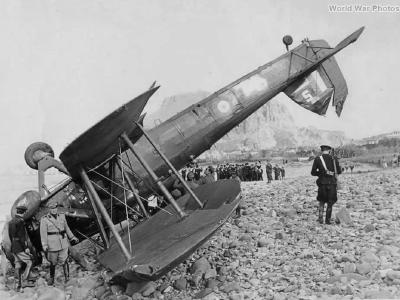

Swordfish HMS Ark Royal Sicily 1940

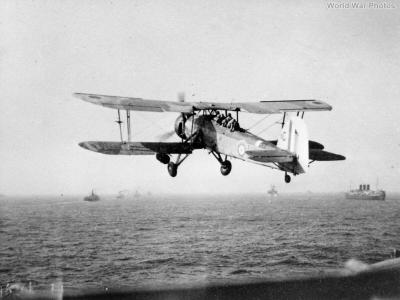

Swordfish 825 Sqn HMS Furious

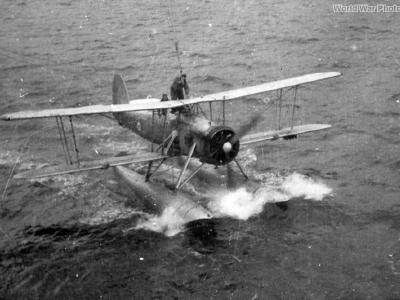

Fairey Swordfish floatplane

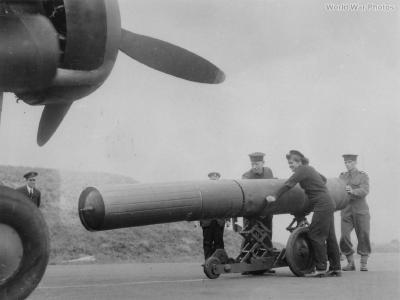

Mine Loaded onto Fairey Swordfish
Swordfish 814 Squadron Formation over HMS Ark Royal
Stringbags with invasion stripes and eight rocket projectiles
Stringbag with invasion stripes

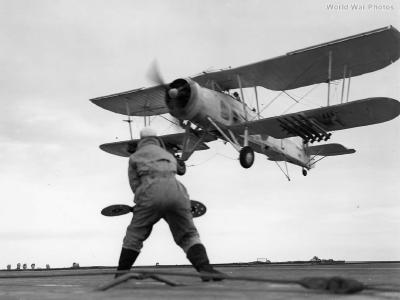

Batsman Signalling Down Swordfish HMS Tracker 1944

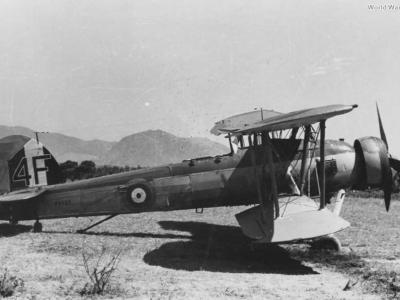

Captured Swordfish P4127 4F of 820 Naval Air Squadron, Sardinia 1940

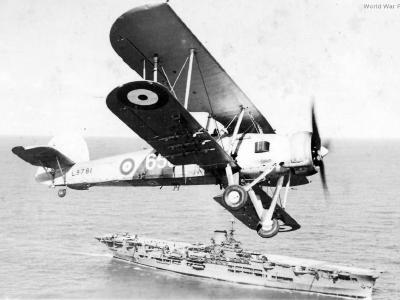

Fairey Swordfish Mk I L9781 650 of 820 Sqn over HMS Ark Royal, 1939

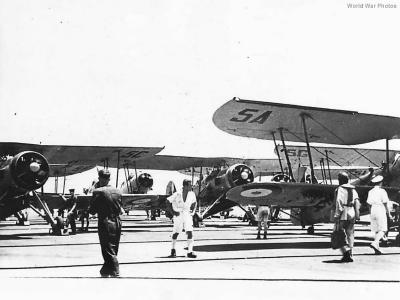

818 Squadron FAA Swordfish aboard HMS Ark Royal 1940
Swordfish of No. 813 Squadron takes off From USS Wasp 1942 3
Gauntlet Mk I in the foreground with a Swordfish behind
Fairey Swordfish Mk III NF374 of No. 119 Squadron RAF
Fairey Swordfish of No. 813 Squadron aboard USS Wasp 1942

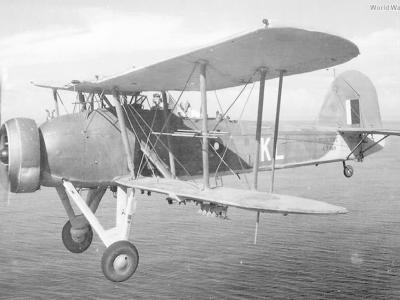

Swordfish Mk II LS348 KL of No, Squadron 756 Ceylon

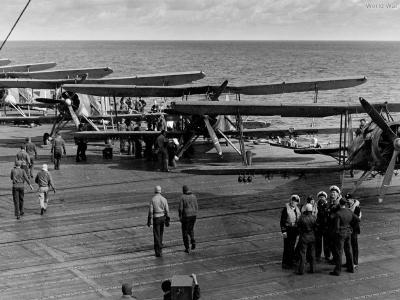

“Stringbags” of No. 813 Squadron aboard USS Wasp 1942 2

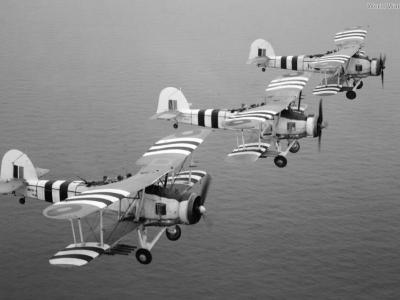

Swordfishes from 816 Squadron August 1944

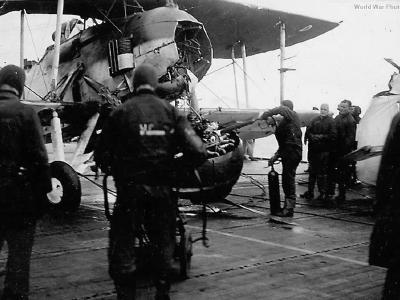

Engine separated from the Swordfish bomber
Swordfish Buzz USS Wasp 1942

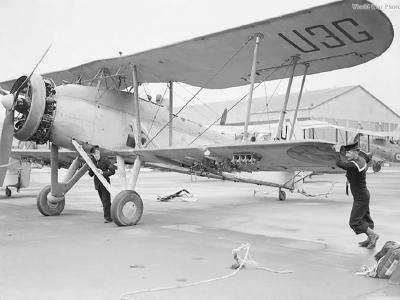

Swordfish U3G
Fairey Swordfish Mk I K5933 in flight
Swordfish on USS Wasp elevator April 1942

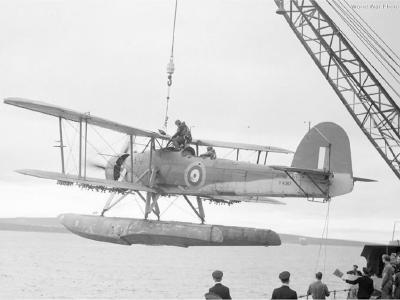

Swordfish V4367 from HMS Malaya

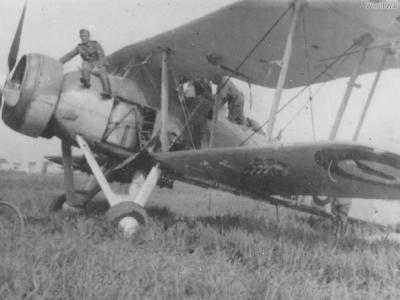

Abandoned Swordfish Mk I France 1940
Captured Swordfish P4127 4F of 820 Naval Air Squadron, Sardinia 1940 2

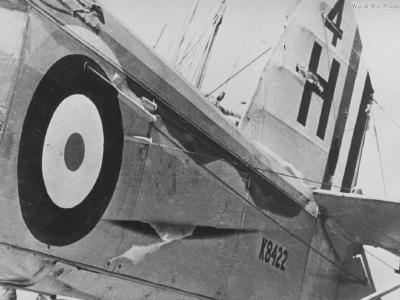

Damaged Swordfish K8422 of 820 Squadron FAA 1940

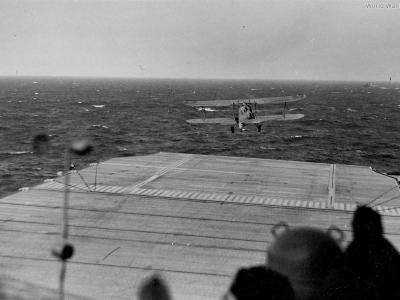

Swordfish 812 Squadron USS Wasp
Swordfish of No. 812 Squadron land on USS Wasp

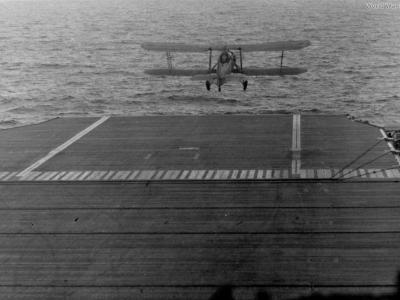

Swordfish 813 Squadron Takes Off From USS Wasp 1942 2

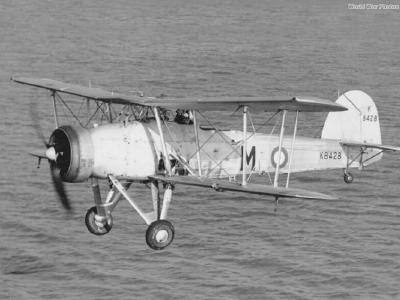

“Stringbag” Mk I K8428 Gosport 1937
Swordfishes of No. 119 Squadron RAF Knokke le Zoute

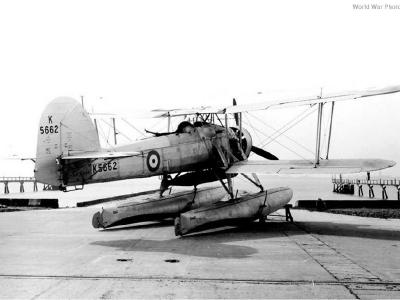

Swordfish floatplane Mk I K5662

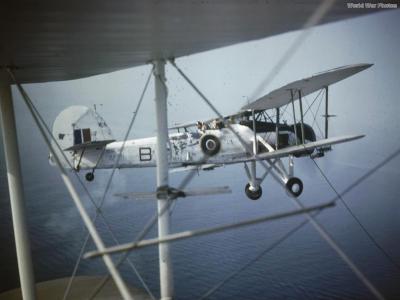

Fairey Swordfish Mk II HS545 of No. 824 Sqn

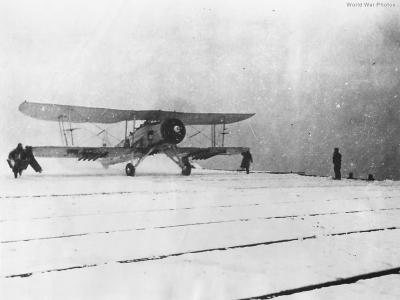

Swordfish of No. 842 Sqn takes off from snow-covered HMS Fencer 1945

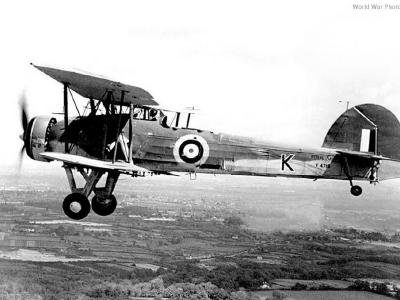

Swordfish V4719 over Nova Scotia

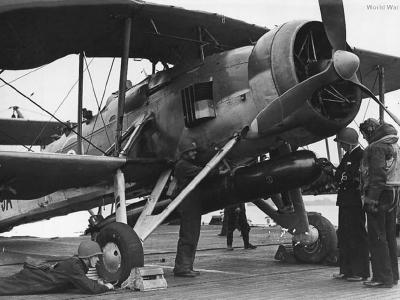

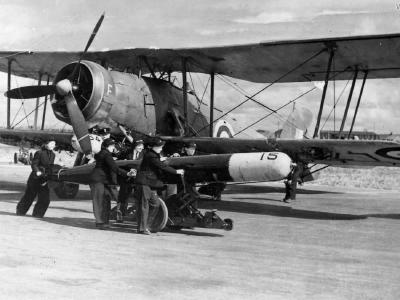

Swordfish F with torpedo
Swordfish Mk I, close up view of engine

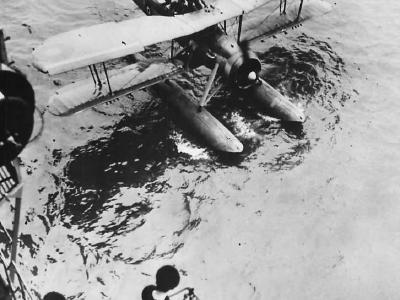

Swordfish floatplane being hoisted aboard Ark Royal 40

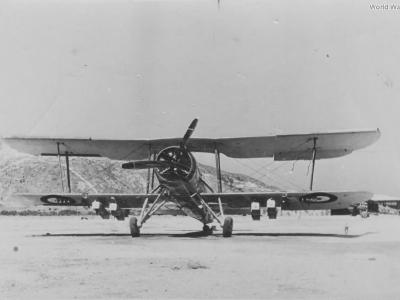

Captured Swordfish

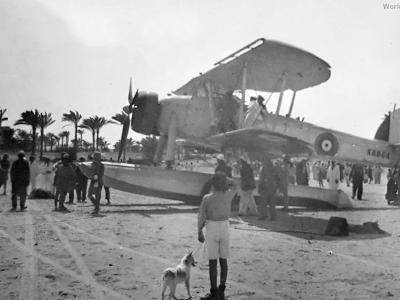

Swordfish floatplane of No. 700 Squadron from HMS Warspite
Swordfish 812 Squadron with folded wings aboard USS Wasp April 1942

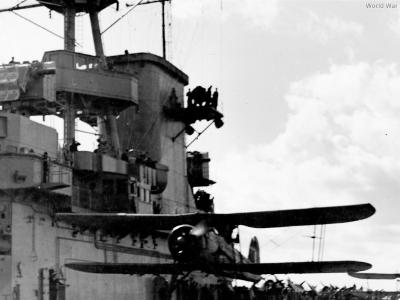

Swordfish 813 Squadron Takes Off From USS Wasp 18 April 1942

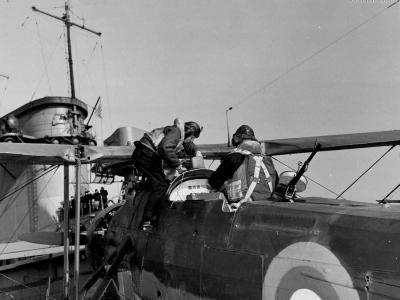

Swordfish Crew Readies for Launch to Malta, 812 Sqn USS Wasp

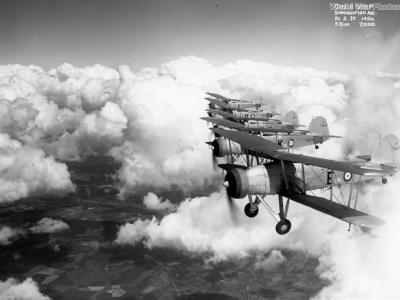

The Fairey Swordfish was a torpedo bomber used by the Fleet Air Arm of the Royal Navy during World War II. Affectionately known as the “Stringbag” by its crews, it was already outdated when the war started, but was operated as a primary attack aircraft into 1942.
The Swordfish was based on the Fairey PV and was offered to the Royal Navy to fulfill a reconnaissance and torpedo attack role. The prototype TSR II first flew on April 17, 1934. It was a large biplane with a metal frame covered in fabric, specifically for carrier use it had folding wings. An order was placed in 1935 and the aircraft entered service in 1936. By 1939 the Royal Navy had thirteen squadrons equipped with the Swordfish.
The primary weapon was the torpedo, but the low speed of the biplane and the need for a long straight approach made it difficult to deliver against well defended targets. However, Swordfish flying from HMS Illustrious made a very significant strike, on November 11, 1940, against the Italian navy at Taranto, Italy and in May 1941 a Swordfish strike was vital in damaging the German battleship Bismarck, they also flew anti-shipping sorties from Malta.
The problems with the aircraft were starkly demonstrated in February 1942 when a strike on German cruisers in the English Channel resulted in the loss of all attacking aircraft. With the development of new torpedo attack aircraft the Swordfish was soon redeployed in an anti-submarine role, equipped with depth-charges or ten 27 kg rockets and flying from the smaller escort carriers or even Merchant Aircraft Carriers (MAC) with RATO. The Swordfish was meant to be replaced by the Fairey Albacore, also a biplane, but actually outlived its intended successor. It was, however, succeeded by the Fairey Barracuda monoplane torpedo bomber.
The Mark II and Mark III variants were both introduced in 1943. The Mark II had metal lower wings to allow the use of rockets and the Mark III added a large centrimetric radar unit. Production ended in 1944 with the Mark IV, which had an enclosed cabin for use by the RCAF, and the aircraft was withdrawn from active service on May 21, 1945. Almost 2391 had been built, 692 by Fairey and 1699 in Sherburn by the Blackburn Aircraft Company, which were sometimes dubbed the “Blackfish”. The most built was the Mark II of which 1080 were made.
Type
- Role: Two/three-seat torpedo-bomber-reconnaissance biplane.
Wings
- Design: Two-bay, unequal-span staggered biplane.
- Structure:
- Upper center-section supported by a pyramid structure.
- Lower center-section stubs braced to upper fuselage longerons with inverted Vee struts.
- Extremities of center-sections connected by pairs of interplane struts, one set for each outer wing set.
- Folding mechanism around rear spar hinges.
- Construction: Built-up steel strip spars, steel drag-struts, duralumin ribs, fabric covering.
- Ailerons: Duralumin-framed and fabric-covered, present on all four wings.
- Hoisting sling incorporated in upper center-section.
Fuselage
- Structure: Rectangular steel-tube, faired to an oval section.
- Covering: Forward sections with detachable metal panels, aft with fabric. Includes large inspection panels in the aft covering.
Tail Unit
- Type: Monoplane.
- Construction: Steel and duralumin framework, covered with fabric.
Landing Gear
- Type: Divided with oleo shock-absorbers.
- Construction:
- Oleo legs anchored to the front spar of the lower center-section and hinged to the fuselage by axle and forwardly-inclined radius-rod.
- Wheels: Medium-pressure with pneumatic brakes.
- Interchangeable wheel chassis with twin single-step all-metal floats.
Power Plant
- Engine: One Bristol Pegasus 30, nine-cylinder radial air-cooled engine, rated at 750 h.p. at 4,750 ft (1,450 m).
- Cooling: Townend ring cowling with leading-edge exhaust-collector.
- Fuel: Main tank in center-section, gravity tank on top of the fuselage.
- Propeller: Fairey metal airscrew.
Accommodation
- Crew: Two to three, depending on mission type.
- Pilot: Positioned aft of the wings.
- Gunner/Observer: Positioned immediately behind the pilot. For reconnaissance, a third crew member can be carried.
- Features: Full range of equipment and instruments for Fleet Air Arm duties, including catapulting points and deck arrester gear.
Armament and Equipment
- Guns:
- One 0.303 in. Vickers gun mounted on the top deck of the fuselage, firing through the propeller.
- One 0.303 in. Lewis gun on a Fairey high-speed gun-mounting in the rear cockpit.
- Ordnance:
- Torpedo: Carried beneath the fuselage on crutches.
- Bombs: Racks beneath the fuselage and lower wings for bombs or sea mines.
- Rocket Projectiles: Racks beneath the wings.
- Load Capacity: Up to a maximum weight of 1,500 lbs. (680 kg) or eight 60 lb. (27.2 kg) H.E. or 25 lb. (11.4 kg) armor-piercing rocket projectiles.
Dimensions
- Wingspan: 45 ft. 6 in. (13.87 m)
- Width (folded): 17 ft. 3 in. (5.26 m)
- Length (landplane): 35 ft. 8 in. (10.9 m)
- Length (seaplane): 40 ft. 6 in. (12.3 m)
- Height (landplane): 12 ft. 4 in. (3.75 m)
- Height (seaplane): 14 ft. 7 in. (4.45 m)
Weights
- Landplane:
- Empty: 4,700 lbs. (2,134 kg)
- Disposable load (torpedo-bomber): 2,810 lbs. (1,276 kg)
- Disposable load (reconnaissance): 2,060 lbs. (935 kg)
- Loaded (torpedo-bomber): 7,510 lbs. (3,410 kg)
- Loaded (reconnaissance): 6,750 lbs. (3,065 kg)
- Seaplane:
- Empty: 5,300 lbs. (2,406 kg)
- Disposable load: Same as landplane
- Loaded (torpedo-bomber): 8,110 lbs. (3,682 kg)
- Loaded (reconnaissance): 7,360 lbs. (3,541 kg)
Performance
- Landplane:
- Max Speed (torpedo-bomber): 138 mph (220.6 km/h) at 5,000 ft. (1,525 m)
- Max Speed (reconnaissance): 144 mph (230.4 km/h) at 5,000 ft. (1,525 m)
- Seaplane:
- Max Speed (torpedo-bomber): 128 mph (204.8 km/h) at 5,000 ft. (1,525 m)
- Max Speed (reconnaissance): 134 mph (214.4 km/h) at 5,000 ft. (1,525 m)
