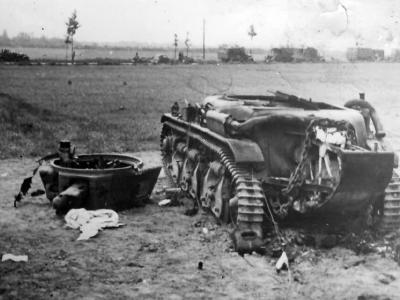

Burned out Renault R-35

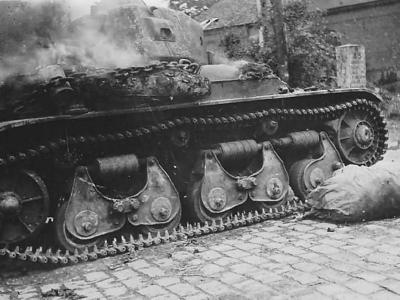

Burning Char Renault R35
Captured by Waffen SS unit Renault R35

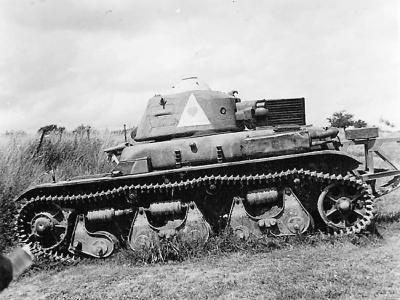

Captured tank R35 2

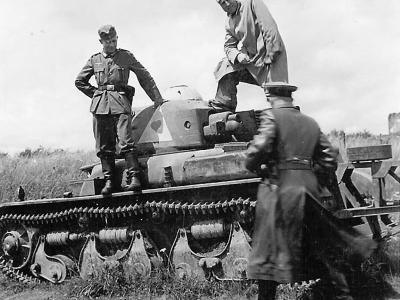

Captured tank Renault R-35

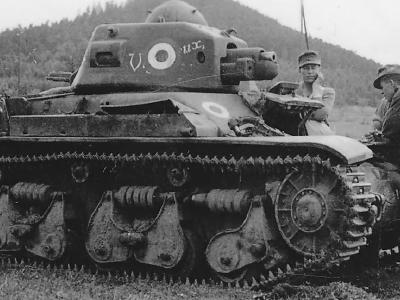

Char leger R35 and Gebirgsjagers

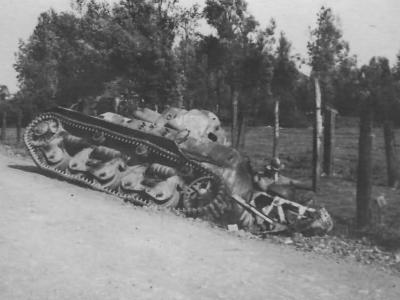

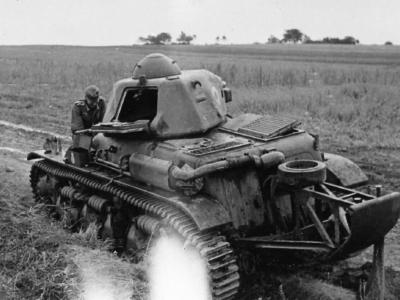

Char leger Renault R35 fitted with a trench crossing tail

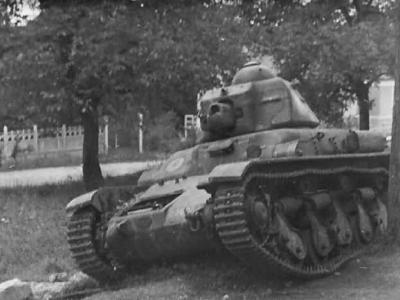

Char Renault R 35 photo
Char Renault R35 with tail
Destroyed R-35

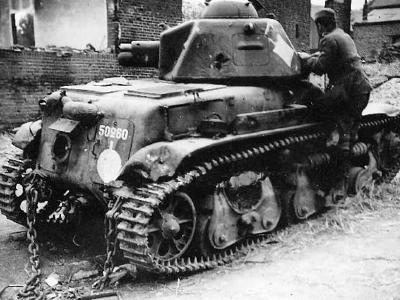

Destroyed R35 registration number 50260

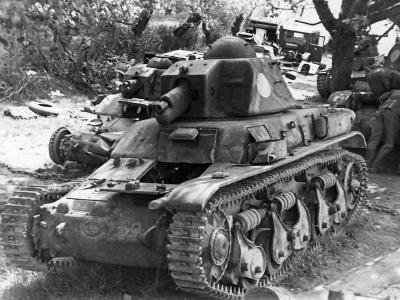

Destroyed Renault R35 tanks
French officers lined up by R-35 tanks 1939
French Renault R35 tanks loaded on train for transport to front 1939

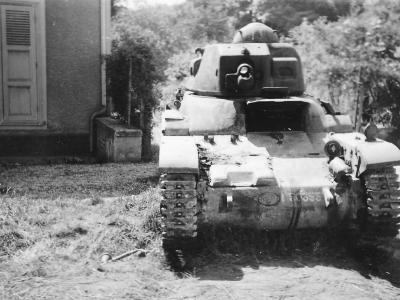

French tank Renault R35 number 500355

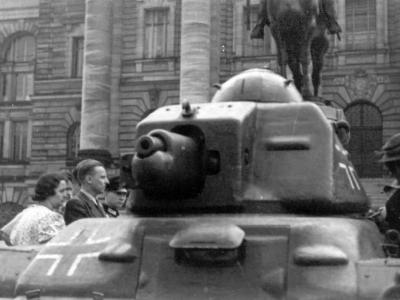

German Renault R-35

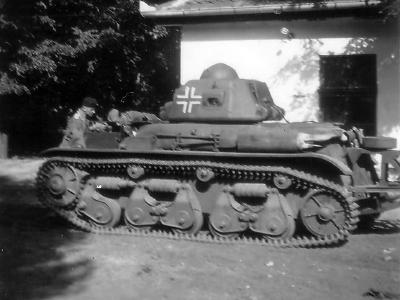

German Renault R-35 2

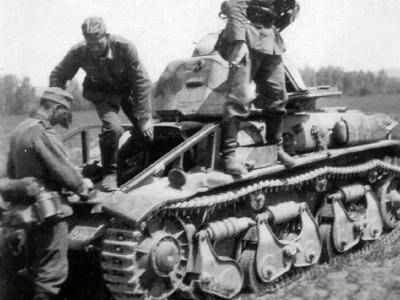

German soldiers atop Renault R35

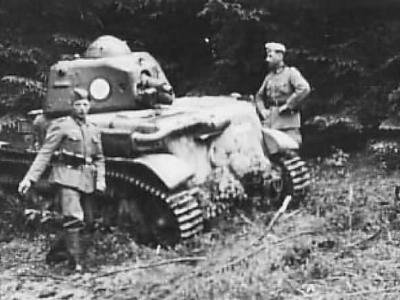

German troops pose next to a captured and damaged Renault R35 tank
German troops posing on a Renault R35 light tank France 1940

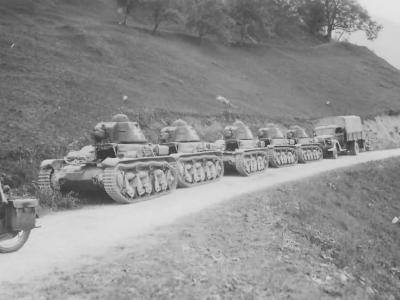

Panzerkampfwagen 35R 731 f

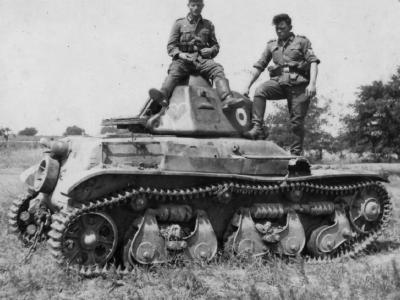

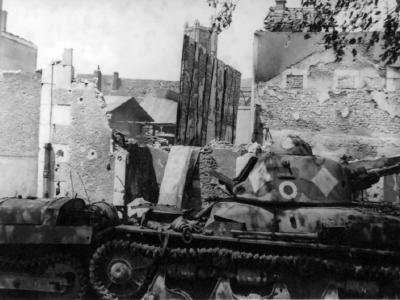

R-35 1940
R-35 tank

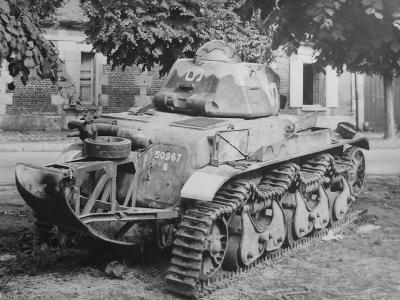

R35 number 50967 with tail

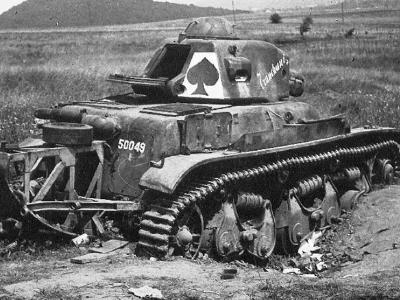

R35 registration number 50049

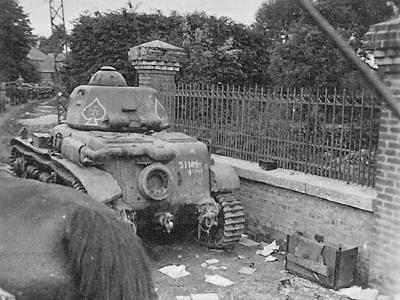

R35 registration number 51141

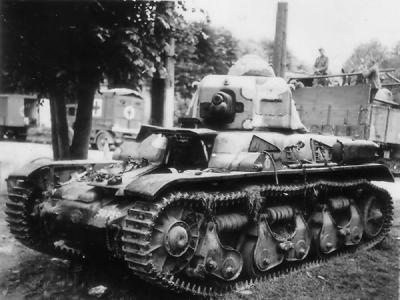

R35 tank registration number 50939

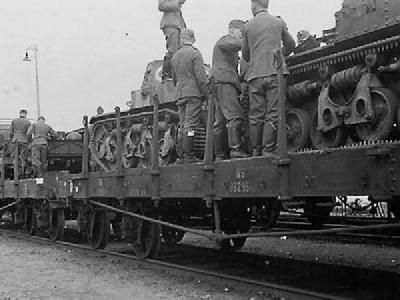

Renault AMR 35 on railroad flat car

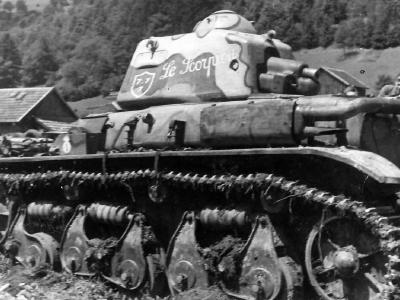

Renault R 35 "Le Scorpion"

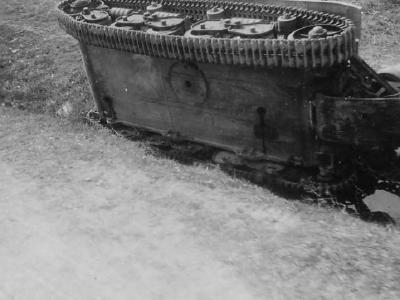

Renault R 35 10

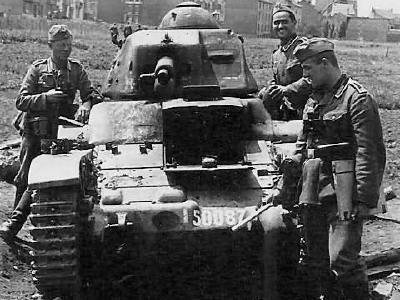

Renault R 35 50087

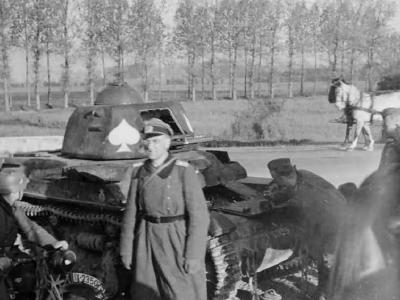

Renault R 35 abandoned

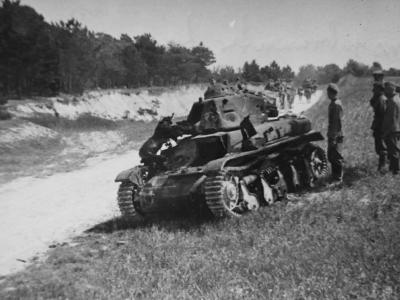

Renault R 35 France 1940 photo

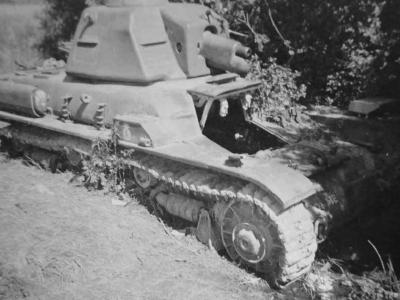

Renault R 35 french light infantry tank

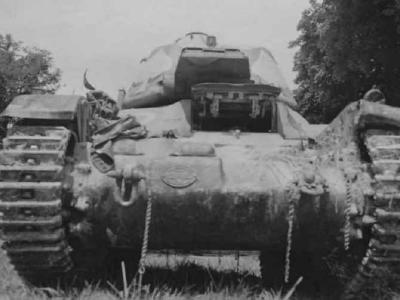

Renault R 35 french light tank

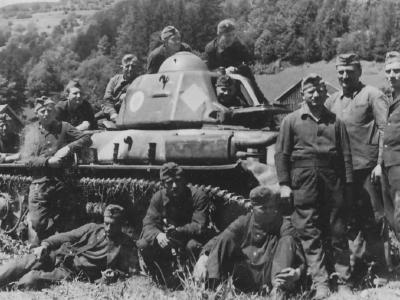

Renault R 35 infantry tank

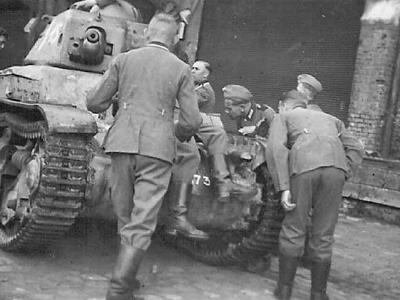

Renault R 35 light tank

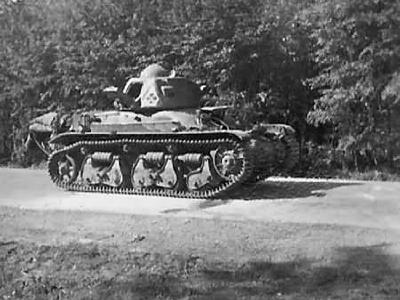

Renault R 35 Panzer Tank

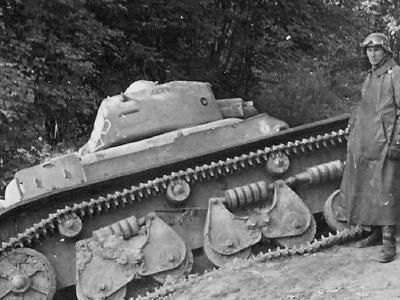

Renault R 35 photo

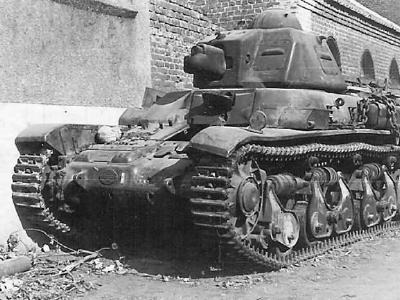

Renault R 35 renault 2

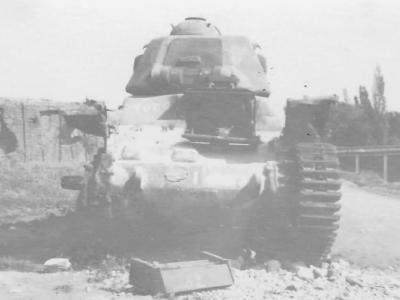

Renault R 35 Renault char leger

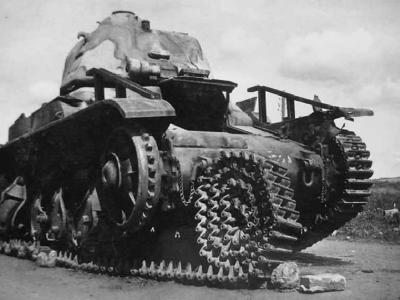

Renault R 35 tank

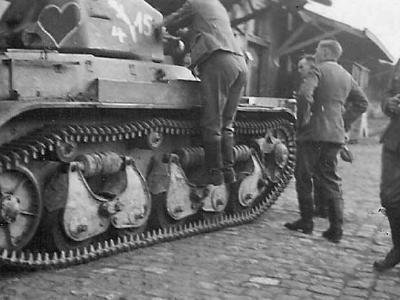

Renault R 35 with heart France 1940

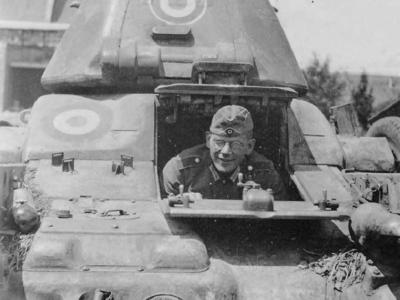

Renault R-35 2

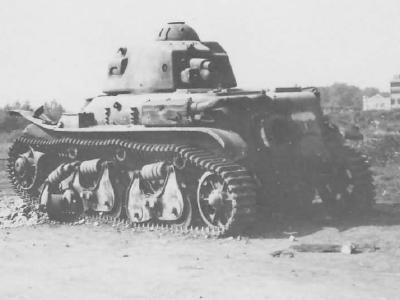

Renault R-35 abandoned at the side of the road somewhere in France after the german attack in May 1940

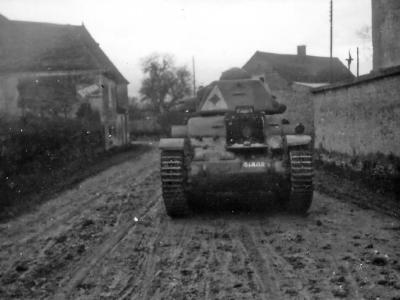

Renault R-35 registration number 51442

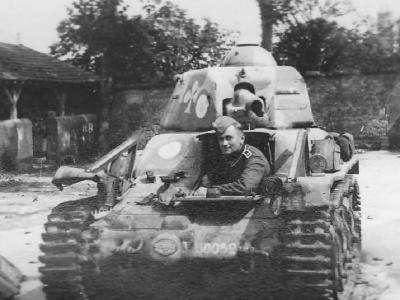

Renault R35 50052

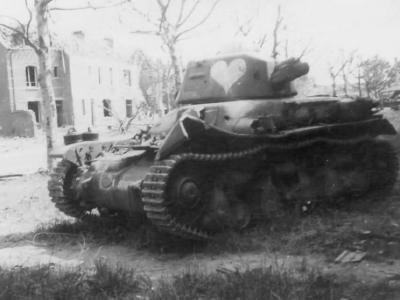

Renault R35 50069 39 BCC France 1940

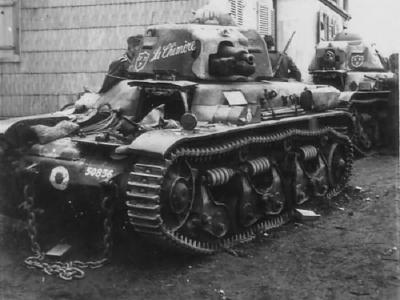

Renault R35 50856 named La Chimere

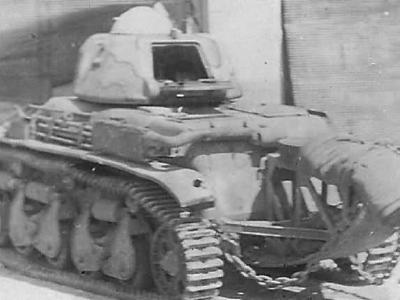

Renault R35 equipped with the trench crossing tail

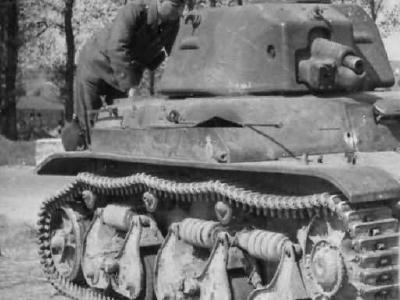

Renault R35 french light tank

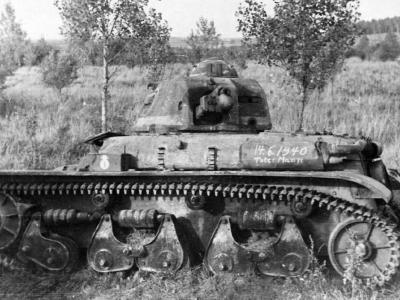

Renault R35 June 1940

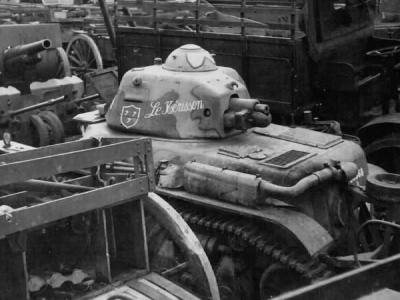

Renault R35 named Le Herisson

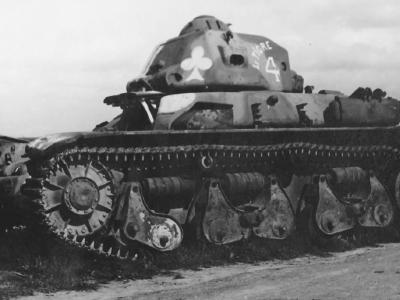

Renault R35 named Le Tigre

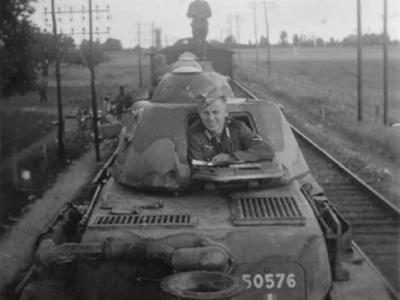

Renault R35 number 50576

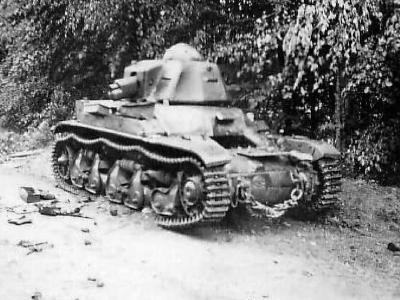

Renault R35 photo

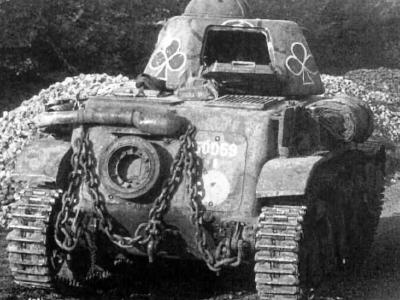

Renault R35 registration number 50059

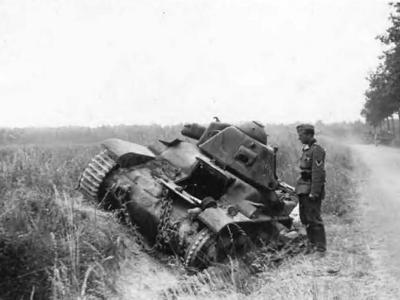

Renault R35 tank abandoned
Renault R35 tank fell in german hands during the german Invasion of France in May 1940

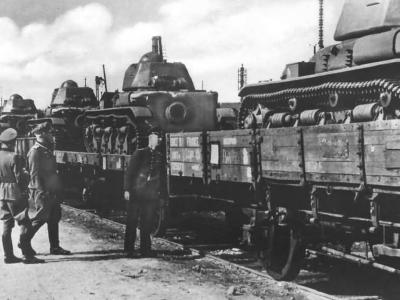

Renault R35 tanks on railroad flat cars

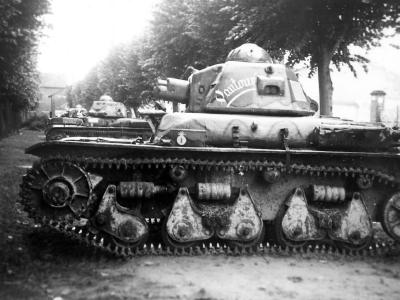

Renault R35 Vautour

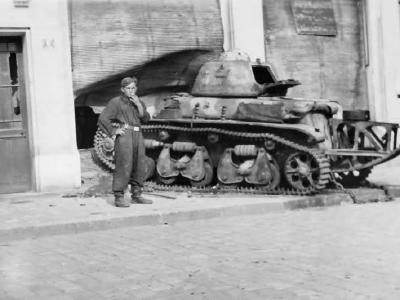

Renault R35 with trench crossing tail - France 1940

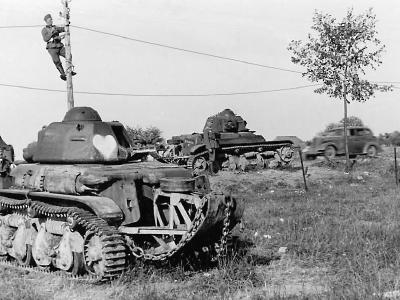

Tank R-35 equipped with trench crossing tail

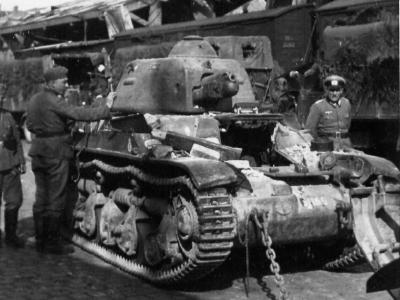

Tank Renault R35 51169

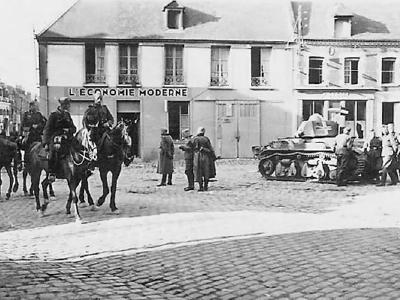

wehrmacht cavalry pass french Renault R 35 tank

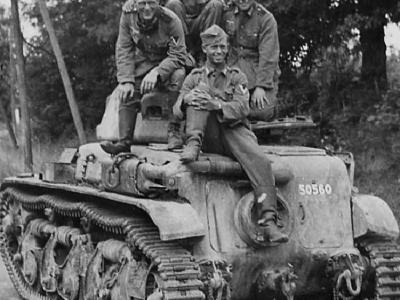

Wehrmacht soldiers atop R35 registration number 50560
Renault R35, an abbreviation of Char léger Modèle 1935 R or R 35, was a French light infantry tank of the Second World War. Designed to replace the Renault FT-17, R35 was a light tank with heavy armour and fast enough for infantry. Renault R35 was issued to the independent tank battalions, which supported the infantry divisions. First ordered in January 1935, there were 870 available in May 1940. Despite heavy losses, a considerable number were captured intact. They were modified to German requirements, and a number were issued to troops operating in secondary theatres. Production: 1540 tanks. Armour: 43mm, main armament: 37 mm L/21 SA18 gun.
Specifications
| crew | 2 |
| hull armor | front: 32 mm/24° and 43 mm/37°, sides: 40 mm/0°, rear: 40 mm/10°, bottom: 10 mm, top: 25 mm |
| turret armor | front: 40 mm/5°, mantlet: 40 mm, sides: 40 mm/28°, rear: 40 mm/30°, top: 25 mm, cupola: 40 mm |
| main armament | 37mm Puteaux SA 18 or SA 38, 102 rounds |
| secondary armament | 7,5 mm mod 31, 2400 rounds |
| weight (kg) | 9800 |
| combat weight (kg) | 10600 |
| length (mm) | 4020, 4800 with tail |
| width (mm) | 1850 |
| height (mm) | 2130 |
| wheel base (mm) | 1560 |
| track contact (mm) | 2180 |
| ground pressure (kg/cm2) | 0,86 |
| engine | Renault 447, V-4, gasoline, 5878 cm3, 82 hp at 2200 rpm, liquid cooled |
| transmission | 4 forward, 1 reverse |
| fuel capacity (l) | 150 |
| fuel consumption (l) (road / off road) | 122-127 / 214 |
| range (road km/ off-road km) | 140 / 80 |
| max speed (road/ off-road km/h) | 19 |
| tracks width x pitch | 260 mm x 70 mm |
| number of links per trac | 123 |
| ground clearance (mm) | 320 |
| trench crossing (mm) | 1600 (2000 with tail) |
| vertical obstacle (mm) | 600 |
| fording ability (mm) | 600 |
| climbing ability (degrees) | 30 |
| turning circle (mm) | 8500 |
