Sd.Kfz. 231, Sd.Kfz. 232, Sd.Kfz. 233 6 and 8 wheeled armoured cars, used by Wehrmacht during the Second World War.
The development of an armored car based on the chassis pf 6×4 truck was ordered in 1929. Schwerer Panzerspähwagen 6-rad had engine mounted in the front as in normal truck. Chassis was strengthened to take the additional weight, and second steering control was added at the rear.
Development of a 8-rad Schwerer Panzerspähwagen with improved cross country mobility was ordered in 1934. Designated Versuchskraftfahrzeug 623 and 624, an 8 wheeled chassis was developed to carry the armored body and turret.
Production ceased in September 1942 to be repleced by the SdKfz 234 Puma series.
Schwerer Panzerspähwagen – Heavy armored reconnaissance vehicle.
Sd.Kfz. 231 – Gerat 85, normal version used by Aufklärungs (reconnaissance) units. 8-Rad variant production: 607 cars (Sdkfz 231 + 232).
Sd.Kfz. 232 – Gerat 86, radio car with “bedstead” antenna
Sd.Kfz. 233 – Gerat 87, Sd.Kfz. 231/232 (8-Rad, 8 wheels) but equipped with a short barrelled 7.5 cm KwK 37 L/24 gun in an open fixed superstructure. Production: 109 + 10 converted cars.
Specifications:
-
- SdKfz 232 of the 5 SS Panzer Division Wiking Waffen SS
-
- Sd.Kfz. 232 Przemysl Poland 1939
-
- Destroyed SdKfz 231 Poland 1939
-
- Schwerer Panzerspahwagen SdKfz 231 8-Rad Poland
-
- SdKfz 231 8-Rad winter camo 1942
-
- SdKfz 232 of the Waffen SS
-

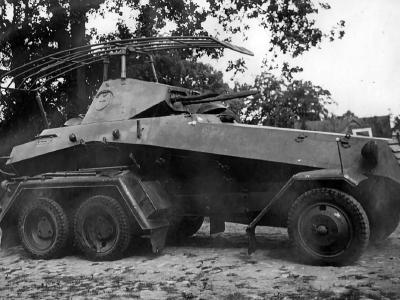

- schwerer Panzerspahwagen (Fu) SdKfz 232 6-Rad
-
- Destroyed German 8 Wheeled Heavy Armoured Car SdKfz 231
-
- Sd.Kfz 232 1939 radio vehicle
-
- US Soldiers in captured German heavy armored car SdKfz 233 “Stummel”
-

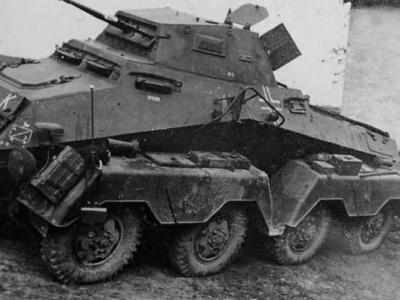

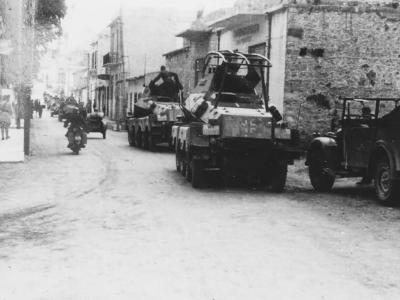

- Heavy, eight-wheeled armoured cars: SdKfz 232 and SdKfz 231
-
- Heavy armoured reconnaissance vehicle Sdkfz 231 8-Rad
-
- Destroyed SdKfz 232 6-Rad
-
- Sd Kfz 232 turret
-
- Destroyed SdKfz 232 armoured radio vehicle
-
- Sdkfz 232 8-Rad and SdKfz 231 6-Rad Przemysl Poland 1939
-
- SdKfz 231 8-Rad and crew
-
- Sdkfz 232 6-Rad radio vehicle
-
- Heavy, eight-wheeled armoured car Sdkfz 231 8-rad
-
- Sdkfz 232 6 rad Poland 1939
-

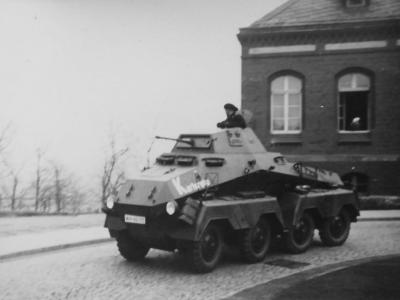

- Sdkfz231 8 rad
-
- Sdkfz 232 8 rad
-
- Sdkfz 231 6rad car
-
- Schwerer Panzerspahwagen SdKfz 231 8 rad
-

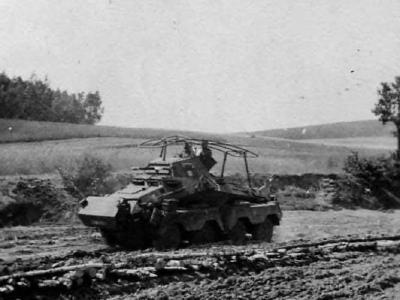

- Sdkfz 232 Russia
-
- Sdkfz 231 8 rad Poland 1939
-
- knocked out Sdkfz 231 Poland 1939
-

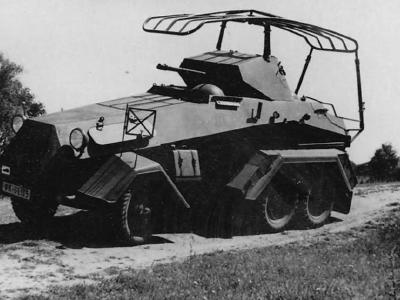

- Sdkfz 232 6 rad
-
- Afrika korps Sdkfz 232
-
- armored car Sdkfz 231 6 rad Poland 1939
-
- Armored car SdKfz 231 8-Rad, WH-75886
-
- Sdkfz 231 heavy armored reconnaissance vehicle
-
- Sdkfz 231 Adler
-
- Sdkfz 232 Funkspahwagen
-

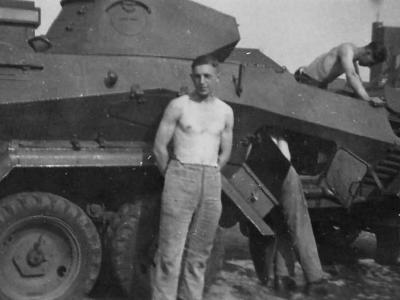

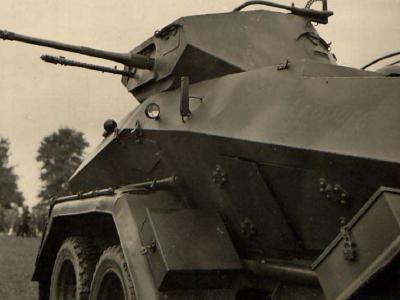

- Sdkfz 231 6 rad
-
- Sdkfz 232 car and crew
-
- SdKfz 231 6-rad from an unknown unit – Poland 1939
-

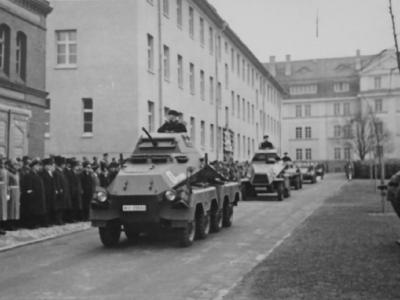

- Sd.Kfz. 231 cars move along a street
-
- Sdkfz 231 Schwerer Panzerspahwagen
-
- Details of the turret of SdKfz 231
-
- Sdkfz 232 france
-
- Radio car SdKfz 232 of the Afrika Korps (DAK)
-
- Sd.Kfz.232 6 Rad rear view
-
- SdKfz 232 Funk Afrika korps
-
- SdKfz 231 8-rad of the Afrika Korps (DAK)
-
- Sdkfz 232 Poland 1939
-
- SdKfz 232 and panzerman
-
- Sd.Kfz.232 6 Rad
-
- destroyed Sdkfz 231 8rad
-
- Sdkfz 231 armoured car
-
- Sd.Kfz. 232 – German armored column moves along behind lines
-
- sdkfz 231 6rad destroyed
-
- panzerspahwagen sdkfz 231 Poland
-
- sdkfz 231 panzerspahwagen
-
- sdkfz 232 8 rad radio car
-
- SdKfz 231 police version
-
- SdKfz 231 6-rad Panzerspahwagen destroyed armored car
-

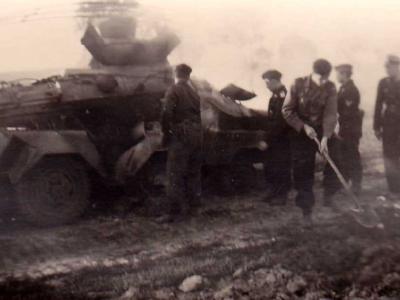

- armored car sdkfz 231
-
- SdKfz 232 Funkwagen
-
- sdkfz 232 6 rad Funkwagen
-
- The charred remnants of a German Sd.Kfz. 231 6-rad panzerspahwagen
-
- afrika korps sdkfz 231 and crew
-
- sdkfz 231 6 rad schwerer panzerspahwagen
-

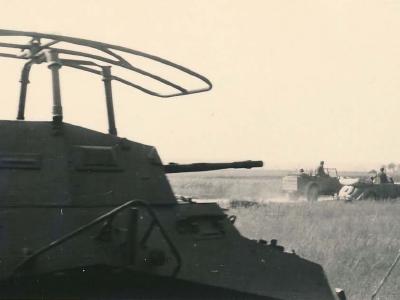

- armored vehicle sdkfz 232 afv
-
- sdkfz 231 6rad afv
-
- afrika korps sdkfz 263 and camel
-
- sdkfz 231 6 rad
-
- sdkfz 231 6 rad wehrmacht armored car
-

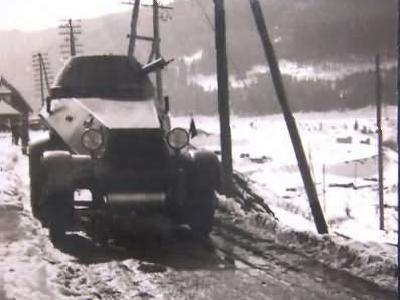

- SdKfz 231 police service
-
- sdkfz 232 rail transport
-

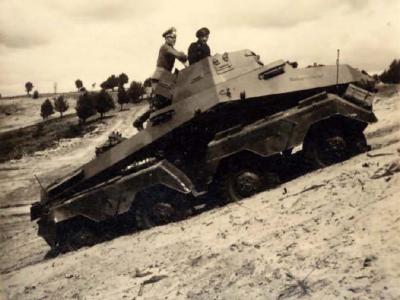

- sd kfz 231 8 rad armored car
-
- sdkfz 231 6rad railroad version
-

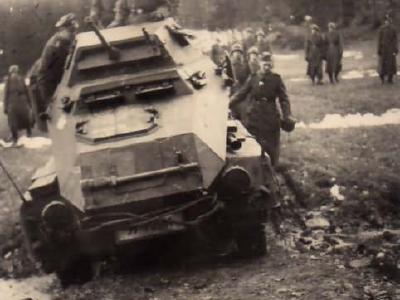

- german armoured car sdkfz 231
-
- sdkfz 231 8 wheel wehrmacht armored car
-

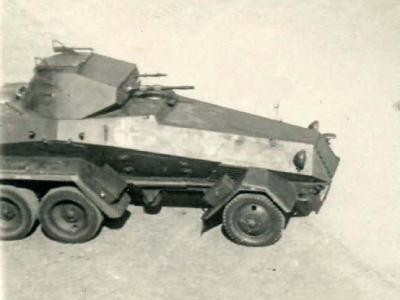

- sdkfz 231 6rad
-
- schwerer panzerspahwagen sdkfz 231
-
- sdkfz 231 and crew
-
- destroyed sdkfz 231
-
- Destroyed six-wheeled SdKfz 232 armoured car
-
- sdkfz 232 8 rad Funkwagen
-
- sdkfz 231 armored vehicle
-
- Six-wheeled SdKfz 231 (6-Rad) armoured car
-
- sdkfz 231 8 rad destroyed
-
- afrika korps sdkfz 231 armored car
-

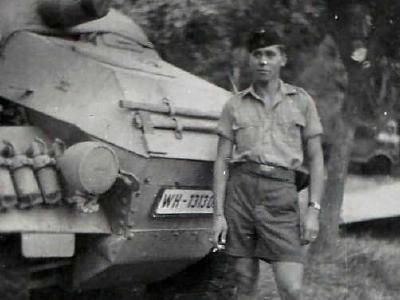

- sdkfz 233 stummel
-

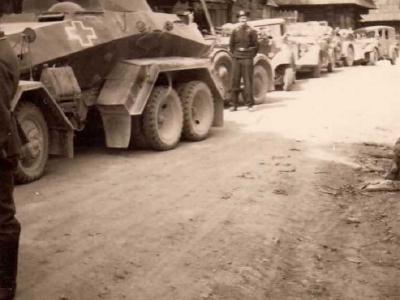

- sdkfz 231 Poland
Sd.Kfz. 231, Sd.Kfz. 232, Sd.Kfz. 233 6 and 8 wheeled armoured cars, used by Wehrmacht during the Second World War.
The development of an armored car based on the chassis pf 6×4 truck was ordered in 1929. Schwerer Panzerspähwagen 6-rad had engine mounted in the front as in normal truck. Chassis was strengthened to take the additional weight, and second steering control was added at the rear.
Development of a 8-rad Schwerer Panzerspähwagen with improved cross country mobility was ordered in 1934. Designated Versuchskraftfahrzeug 623 and 624, an 8 wheeled chassis was developed to carry the armored body and turret.
Production ceased in September 1942 to be repleced by the SdKfz 234 Puma series.
Schwerer Panzerspähwagen – Heavy armored reconnaissance vehicle.
Sd.Kfz. 231 – Gerat 85, normal version used by Aufklärungs (reconnaissance) units. 8-Rad variant production: 607 cars (Sdkfz 231 + 232).
Sd.Kfz. 232 – Gerat 86, radio car with “bedstead” antenna
Sd.Kfz. 233 – Gerat 87, Sd.Kfz. 231/232 (8-Rad, 8 wheels) but equipped with a short barrelled 7.5 cm KwK 37 L/24 gun in an open fixed superstructure. Production: 109 + 10 converted cars.
Specifications:
version |
SdKfz 231 8-Rad |
SdKfz 232 8-Rad |
SdKfz 233 8-Rad “Stummel” |
crew |
4 |
4 |
3 |
armor |
hull: front: 14,5 mm, sides and rear: 8 mm, top: 6 mm, bottom: 5 mm turret: front: 14,5 mm, sides: 8 mm, rear: 10 mm, mantlet: 14,5 mm, top: 6 mm |
hull: front: 14,5 mm, sides and rear: 8 mm, top: 6 mm, bottom: 5 mm turret: front: 14,5 mm, sides: 8 mm, rear: 10 mm, mantlet: 14,5 mm, top: 6 mm |
hull: front: 30 mm, sides and rear: 8 mm, top: 6 mm, bottom: 5 mm turret: front: 14,5 mm, sides: 8 mm, rear: 10 mm, mantlet: 14,5 mm, top: 6 mm |
mainarmament |
2 cm KwK 30 L/55 (180 rounds) |
2 cm KwK 30 L/55 (180 rounds) |
7,5 cm KwK 37 L/24 (32 rounds), |
secondaryarmament |
MG34 (2100 rounds) |
MG34 (1125 rounds) |
MG42 (1500 rounds) |
weight (kg) |
8300 |
8800 – 9100 |
8700 |
length (mm) |
5850 |
5850 |
5850 |
width (mm) |
2200 |
2200 |
2200 |
height (mm) |
2350 |
2900 |
2250 |
wheel base (mm) |
1350 + 1400 + 1350 |
1350 + 1400 + 1350 |
1350 + 1400 + 1350 |
engine |
Bussing NAG L8V/G/S/36, 150 hp (later: 180 hp) at 3000 rpm. 8 cylinder, liquid-cooled, gasoline 7913 cm3 (later: 8363 cm3) |
Bussing NAG L8V/G/S/36, 150 hp (later: 180 hp) at 3000 rpm. 8 cylinder, liquid-cooled, gasoline 7913 cm3 (later: 8363 cm3) |
Bussing NAG L8V/G/S/36, 150 hp (later: 180 hp) at 3000 rpm. 8 cylinder, liquid-cooled, gasoline 7913 cm3 (later: 8363 cm3) |
transmission |
6 forward, 6 reverse |
6 forward, 6 reverse |
6 forward, 6 reverse |
fuel capacity (l) |
150 |
150 |
150 |
fuel consumption (l) (road / off road) |
50 / 90 |
50 / 90 |
50 / 90 |
range (road km/ off-road km) |
300 / 170 |
300 / 170 |
300 / 170 |
max speed (road/ off-road km/h) |
85 / 30 |
85 / 30 |
85 / 30 |
ground clearance (mm) |
270 |
270 |
270 |
trench crossing (mm) |
1800 |
1800 |
1800 |
vertical obstacle (mm) |
500 |
500 |
500 |
fording ability (mm) |
1000 |
1000 |
1000 |
climbing ability (degrees) |
30 |
30 |
30 |
turning circle (m) |
10,5 |
10,5 |
10,5 |
manufacturer |
Deutsche Werke AG, Schichau Werke Elbing |
Deutsche Werke AG, Schichau Werke Elbing |
Schichau Werke Elbing |
chassis numbers |
59902 – 87267 |
85615 – 87267 |
