Sd.Kfz. 263 (Gerat 95) was a heavy cross-country radio vehicle (“Funkspähwagen”) equipped with extra long-range radio equipment and an additional radio operator. Sdkfz 263 was based on the Sd.Kfz. 232 series.
Sdkfz 263 8-rad was developed from 1934 to 1938 alongside the Sd Kfz 231 and 232 vehicles. In place of the turret on the SdKfz 231 and 232, the SdKfz 263 had the superstructure sides extended higher to form a large crew compartment. Armament: 7.92 mm Maschinengewehr 34 machine gun. A large frame antenna and a telescoping mast antenna were provided for the long range radio set. Production : 240 cars (8-rad).
Specifications:
-
- SdKfz 263 front view 3
-
- SdKfz 263 and infantry during exercise shortly before World War II
-

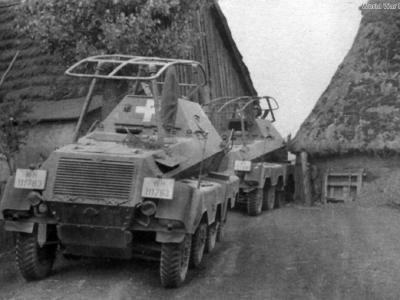

- SdKfz 263 WH 111783 Poland 1939
-

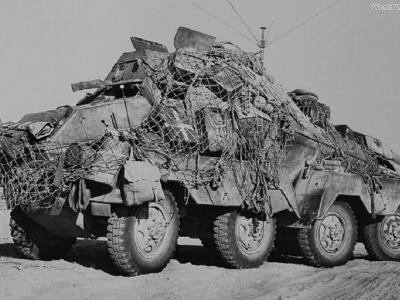

- SdKfz 263 of the Afrika Korps 1942
-

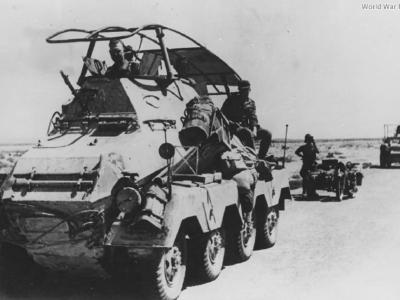

- SdKfz 263 of the DAK
-

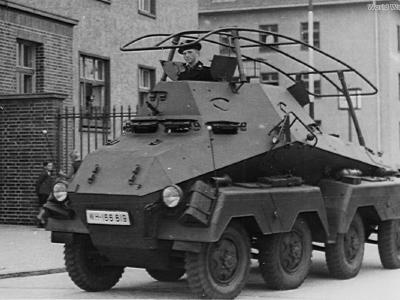

- SdKfz 263 WH 166619
-

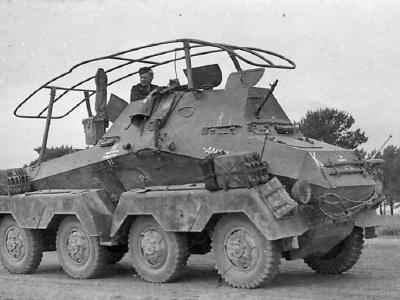

- SdKfz 263 1941 6
-

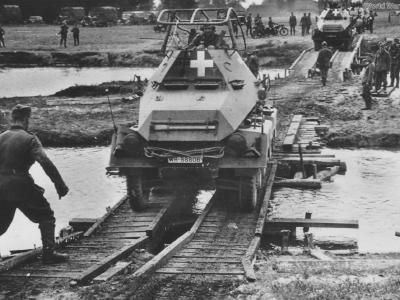

- SdKfz 263 WH 88808 of 4.Panzer Division Poland 1939
-
- SdKfz 263 with telescoping mast
-

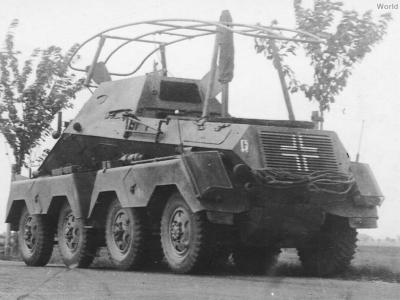

- SdKfz 263 rear view 5
-
- SdKfz 263 Schwerer Panzerspahwagen (8-Rad)
-

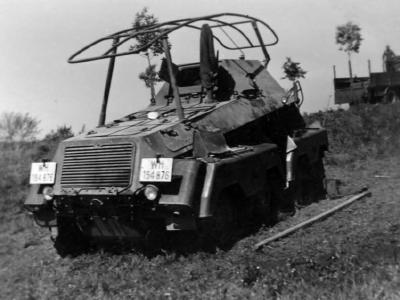

- SdKfz 263 WH 154876 rear view
-
- SdKfz 263 Funk Panzerspahwagen Afrikakorps DAK Afrika
-
- Crew posing beside their heavy radio car Sd Kfz 263
-
- Panzerfunkwagen SdKfz 263 1940 France
-

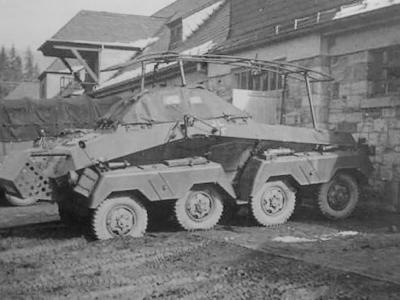

- Sd Kfz 263 Funkspahwagen
-
- SdKfz 263 WH-22512 front view 1940
-
- Panzerfunkwagen 8-Rad SdKfz 263 with flag
-
- SdKfz 263 of the Deutsches Afrikakorps
-
- SdKfz 263 (8-Rad) of the 15 Panzer Division Greece and A13 tank 1941
-
- Panzerfunkwagen SdKfz 263
-
- German heavy radio car SdKfz 263
-
- Sdkfz 263 WH- 285961 8-rad front view
-

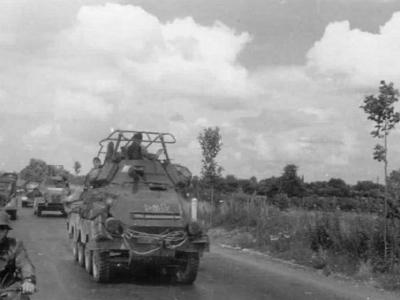

- 8-rad Panzerfunkwagen Sd Kfz 263
-
- Sdkfz 263 WH 32286 8-rad Panzerspahwagen Funk Sudeten 1938
-

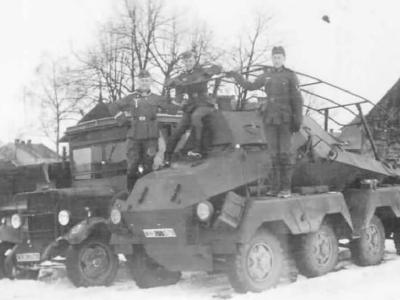

- Sdkfz 263 8-rad in winter
-

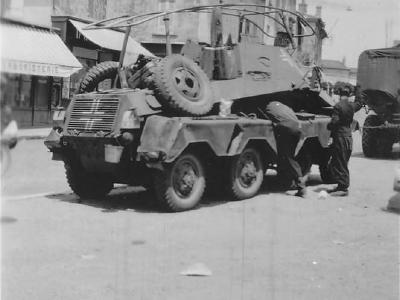

- sdkfz 263 8-rad photo
-
- sdkfz 263 8-Rad Schwerer Panzerfunkwagen
-
- sdkfz 263 Panzerfunkwagen 8-rad
-
- German sdkfz 263 armored car
-

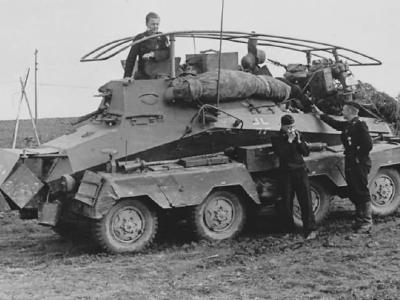

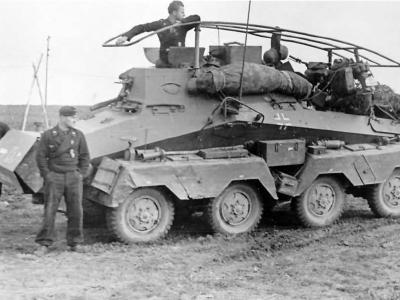

- sdkfz 263 funkwagen photo
-
- sd kfz 263 german radio armored car
-

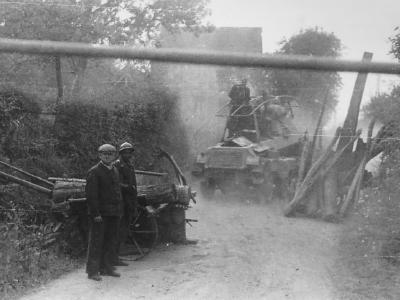

- sd kfz 263 France 1940
-
- Sd Kfz 263 WH- 215795 of the 7. Panzer Division
-

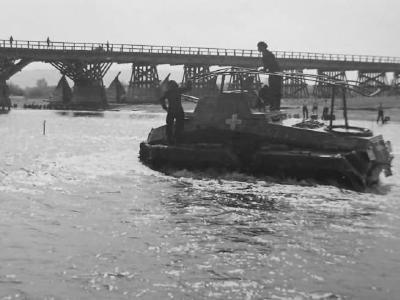

- sdkfz 263 Poland 1939
-

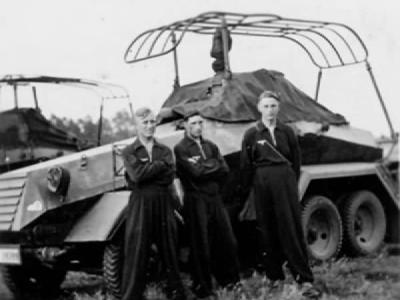

- sdkfz 263 6 rad
-
- sdkfz 263 radio armored car 8×8
-
- sdkfz 263 funkwagen with Zerschellerplatte
-
- sd kfz 263 Panzerfunkwagen 8 rad
-

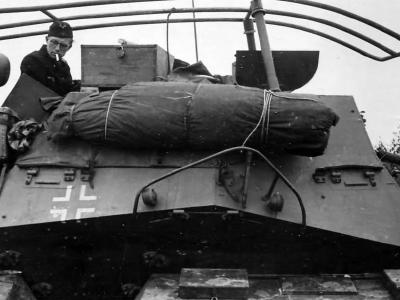

- sd kfz 263 armored car
-

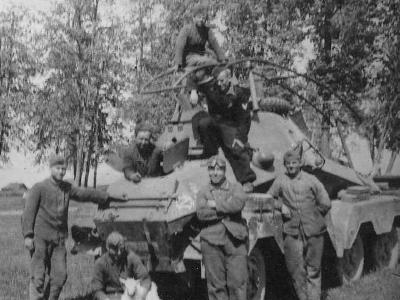

- sdkfz 263 Schwere Panzerfunkwagen 8-rad
-

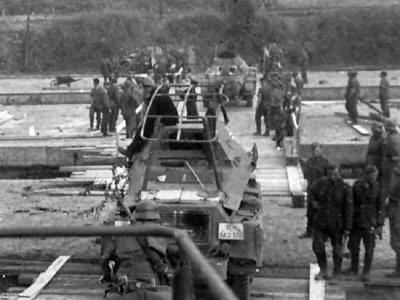

- 8-rad Panzerfunkwagen sdkfz 263
-

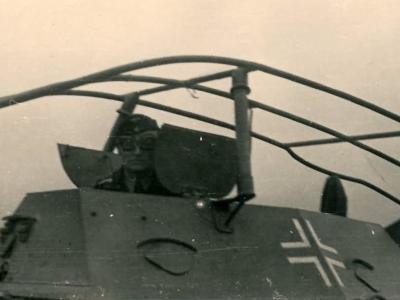

- sdkfz 263 antenna
-

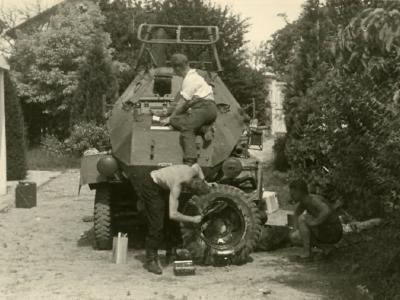

- sdkfz 263 8 rad
-
- sdkfz 263 german armoured command vehicle
-

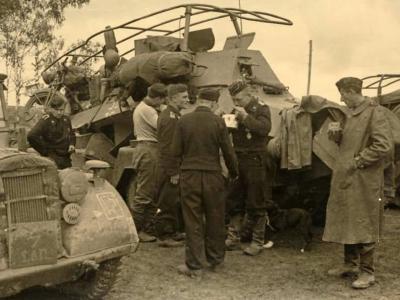

- sdkfz 263 wehrmacht car
-
- sdkfz 263 german armoured cars
-
- sdkfz 263 radio car with Zerschellerplatte
-

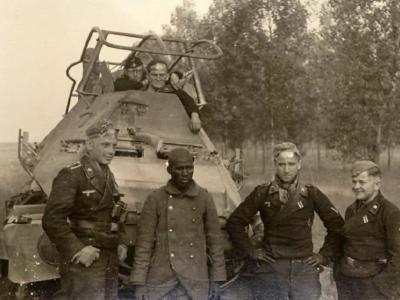

- Sd.Kfz. 263 during Westfeldzug – campaing in Belgium and France in May 1940
-
- Sd.Kfz 263 of the Panzer Group Kleist
-
- sdkfz 263 armored car
-
- sdkfz 263 afrika korps DAK
-
- sdkfz 263 funkwagen of 7 panzer division
-
- sdkfz 263 armored car radio
-

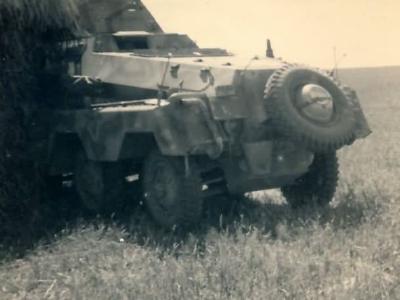

- sd kfz 263 camouflage
-
- sdkfz 263 armoured command vehicle
-

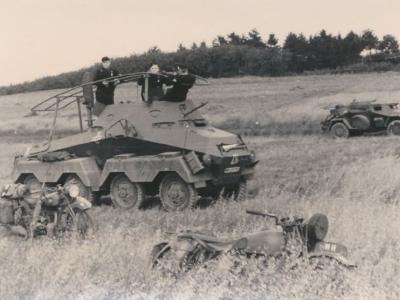

- sdkfz 263 wheeled armoured vehicles
-

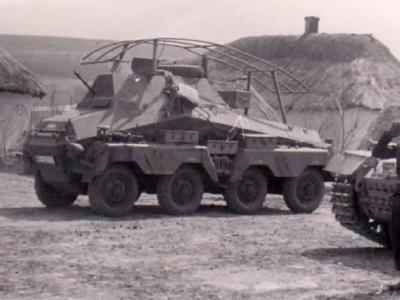

- sdkfz 263 armored radio car
-
- sdkfz 263 armored fighting vehicle
-
- Sd.Kfz. 263 funkwagen with Zerschellerplatte
-

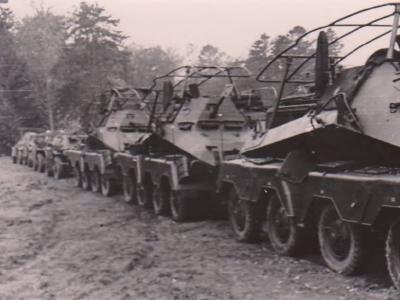

- sdkfz 263 ww2 armored cars
-

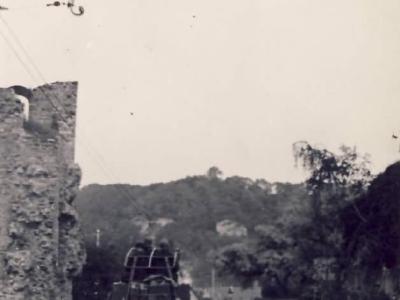

- sdkfz 263 Brest France
-

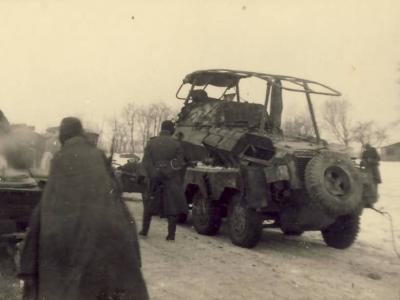

- sdkfz 263 funkwagen in winter
-
- sdkfz 263 funkwagen in France
-
- sdkfz 263 from of 7 panzer division 1940
-

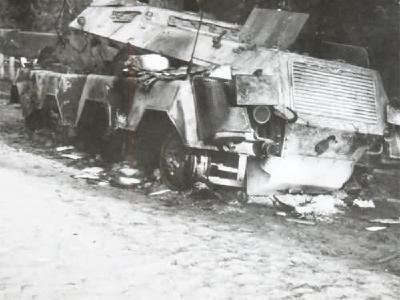

- sdkfz 263 destroyed
-

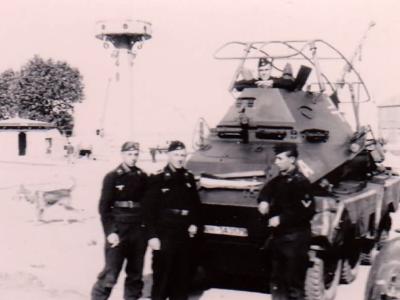

- sdkfz 263 Funkspahwagen
-
- sdkfz 263 funk schwerer panzerspahwagen
-
- afrika korps sdkfz 263 DAK
-
- sdkfz 263 and crew
-

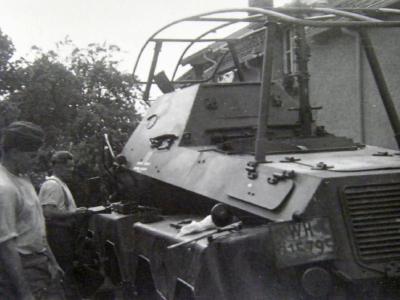

- sdkfz 263 german armored car
-
- sdkfz 263 armored cars
-

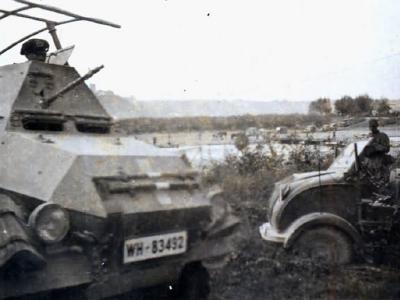

- sd kfz 263 wehrmacht
-
- sdkfz 263 german armored car 2
-

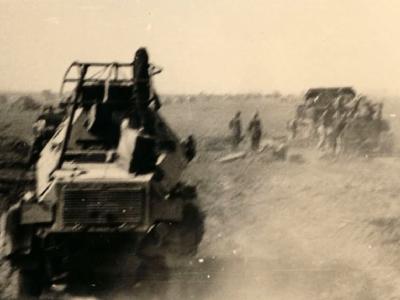

- sdkfz 263 in battle
-

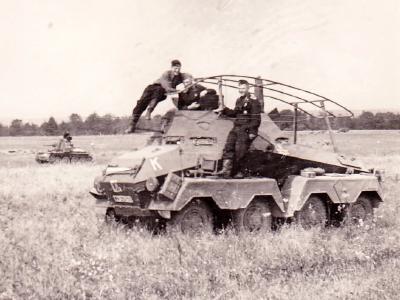

- Sd.Kfz. 263 from the Panzer Group Kleist
Sd.Kfz. 263 (Gerat 95) was a heavy cross-country radio vehicle (“Funkspähwagen”) equipped with extra long-range radio equipment and an additional radio operator. Sdkfz 263 was based on the Sd.Kfz. 232 series.
Sdkfz 263 8-rad was developed from 1934 to 1938 alongside the Sd Kfz 231 and 232 vehicles. In place of the turret on the SdKfz 231 and 232, the SdKfz 263 had the superstructure sides extended higher to form a large crew compartment. Armament: 7.92 mm Maschinengewehr 34 machine gun. A large frame antenna and a telescoping mast antenna were provided for the long range radio set. Production : 240 cars (8-rad).
Specifications:
| version | SdKfz 263 8-Rad |
| crew | 4 |
| armor | hull: front: 14,5 mm, sides and rear : 8 mm, top: 6 mm, bottom: 5 mm turret: front: 14,5 mm, sides: 8 mm, rear: 10 mm, mantlet: 14,5 mm, top: 6 mm |
| main armament | – |
| secondary armament | MG34 (1050 rounds) |
| weight (kg) | 8680 |
| length (mm) | 5850 |
| width (mm) | 2200 |
| height (mm) | 2900 |
| wheel base (mm) | 1350 + 1400 + 1350 |
| engine | Bussing NAG L8V/G/S/36, 150 hp (later: 180 hp) at 3000 rpm. 8 cylinder, liquid-cooled, gasoline 7913 cm3 (later: 8363 cm3) |
| transmission | 6 forward, 6 reverse |
| fuel capacity (l) | 150 |
| fuel consumption (l) (road / off road) | 50 / 90 |
| range (road km/ off-road km) | 300 / 170 |
| max speed (road/ off-road km/h) | 85 / 30 |
| ground clearance (mm) | 270 |
| trench crossing (mm) | 1800 |
| vertical obstacle (mm) | 500 |
| fording ability (mm) | 1000 |
| climbing ability (degrees) | 30 |
| turning circle (m) | 10,5 |
| manufacturer | Deutsche Werke AG, Schichau Werke Elbing |
| chassis numbers | 59902 – 87267 |
