The 88 mm Flak gun (commonly called the “Acht-Acht”) was a German anti-aircraft and anti-tank artillery gun from World War 2.
Production: 21310 guns.
Specifications:
-
- Flak 88 mm Geschutz Stellung 1942
-

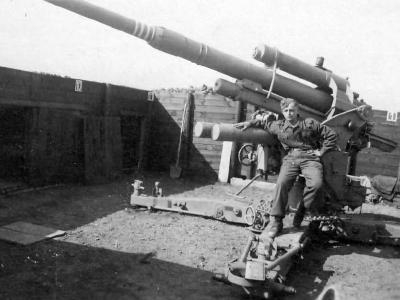

- Flak 88 1944 Gobschelwitz Leipzig Germany
-

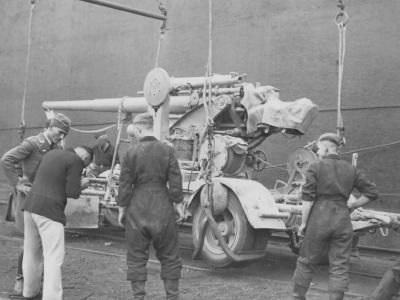

- Wehrmacht 88 mm Flak 18 gun Afrika korps
-

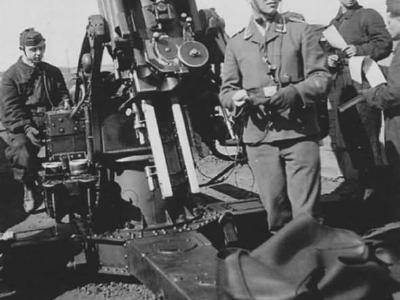

- Flak 18 88 mm anti aircraft gun
-
- 8,8 cm Flak 37 anti aircraft gun
-

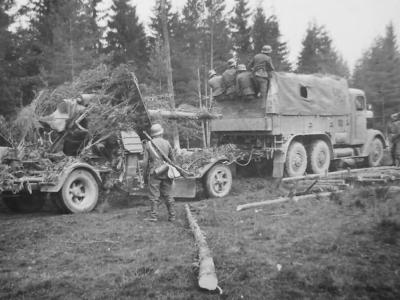

- 8,8 cm Flak 18 towed by Skoda type H/HD
-

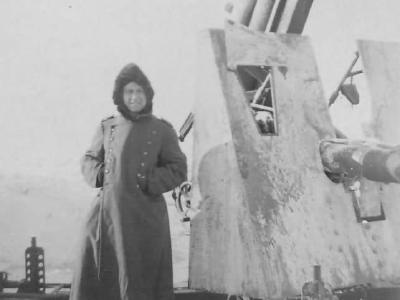

- Flak 88 in anti aircraft position winter
-

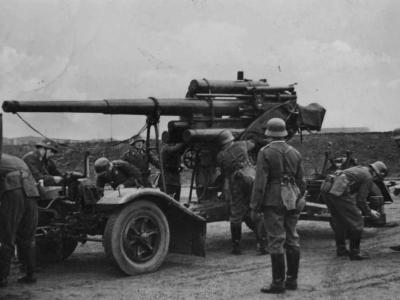

- Flak 18 88 mm anti aircraft artillery
-

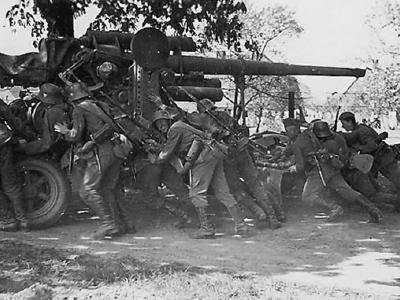

- Flak 18 88 mm AA gun
-

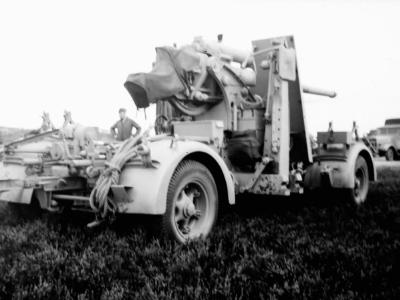

- 8.8 cm Flak 36
-

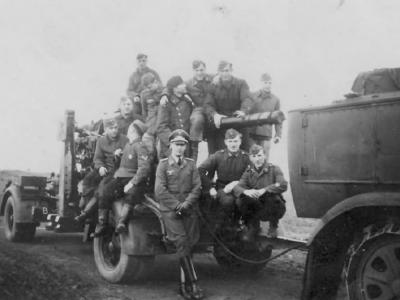

- Flak 88 mm towed
-

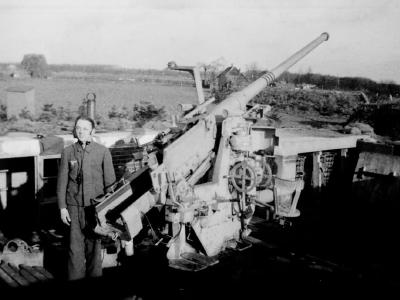

- German anti aircraft gun Flak
-

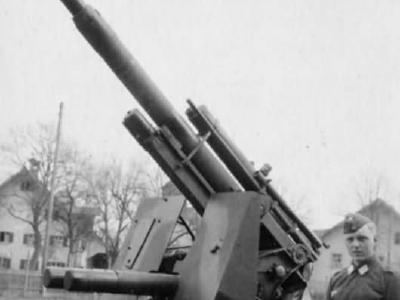

- Flak 88 anti aircraft gun 2
-
- Flak 88 with crew
-

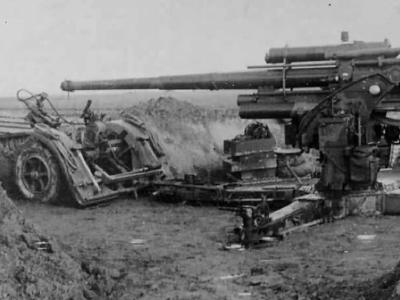

- German 88 mm Artillery Flak 18
-

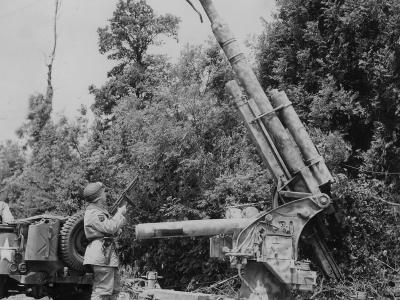

- destroyed Flak 88 Montebourg Normandy 1944
-

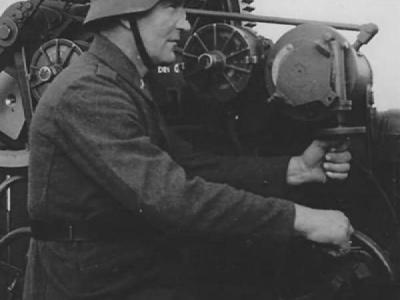

- Flak 88mm gun and soldier
-

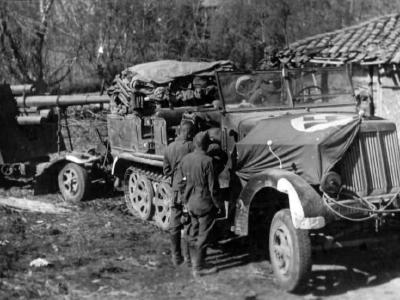

- Flak 88 mm and halftrack Greece April 1941
-

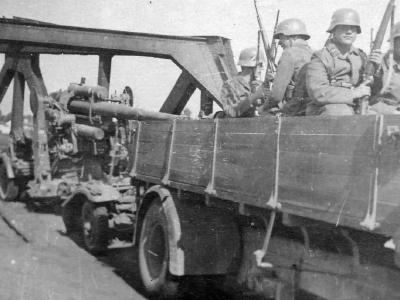

- Flak 18 88 mm anti aircraft gun 12
-

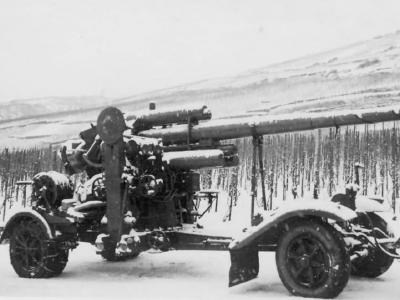

- Flak 18 8,8cm AA gun
-

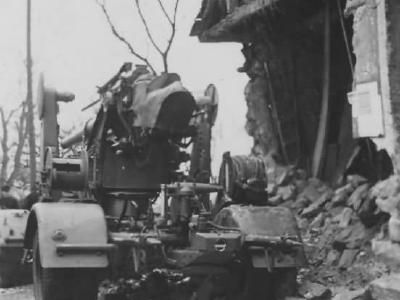

- Flak 18 88 mm anti aircraft gun 6
-

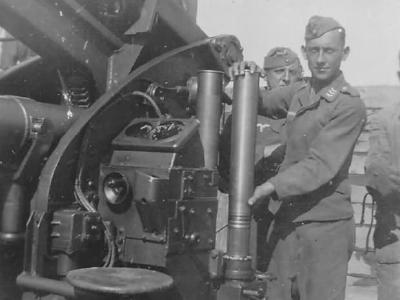

- Flak 88 and Luftwaffe crew
-

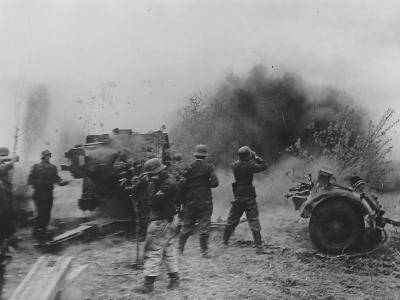

- Flak 88 firing Charkow eastern front 1941
-
- Flak 88 Febr 1942 Demyansk Pocket
-

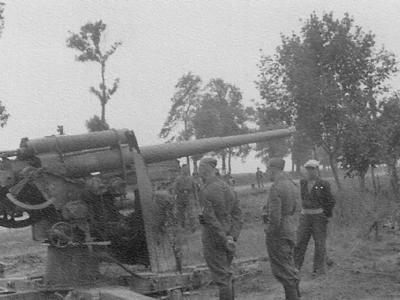

- captured Flak 88
-

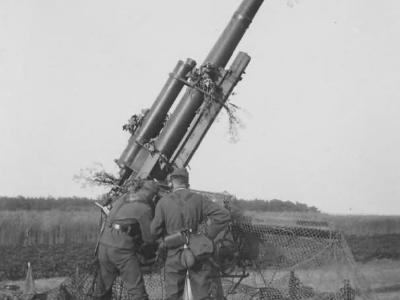

- Flak 88 mm gun
-
- Luftwaffe Crew Posed By 8.8cm Flak Gun Saloniki Greece 1943
-

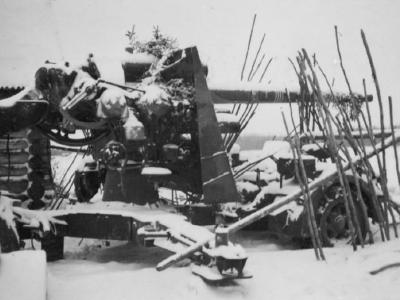

- Flak 36 winter
-
- Two 88 mm anti-aircraft guns stands ready for action
-

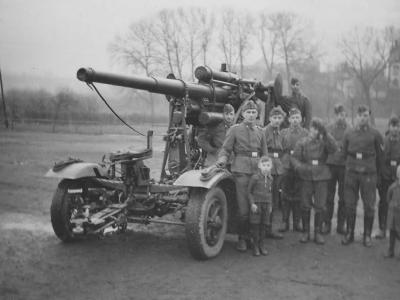

- Flak 18 88 wwii artillery
-

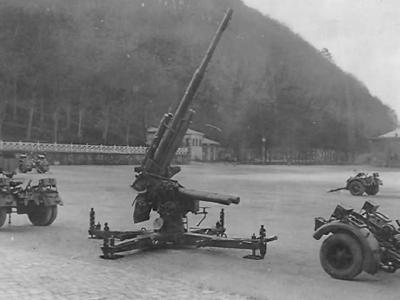

- Flak 36 with both bogies already detached
-
- Flak 18 88 mm anti aircraft gun
-

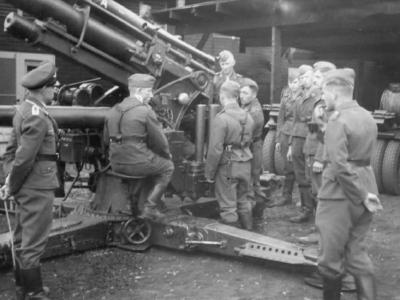

- Flak 88 anti aircraft gun crew training
-

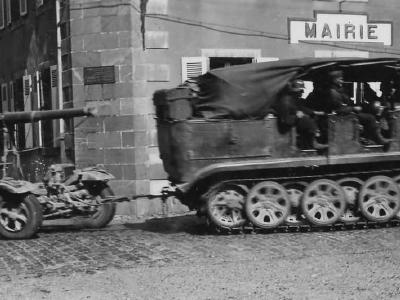

- 8,8 cm Flak 18 towed by a half-tracked prime mover – France 1940
-

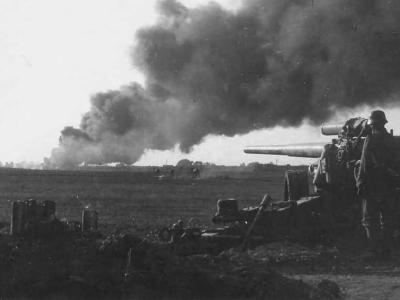

- Flak 88 east front
-

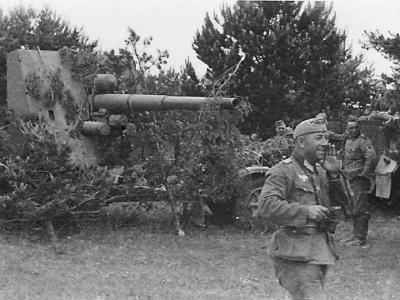

- Flak 18 88 mm gun
-

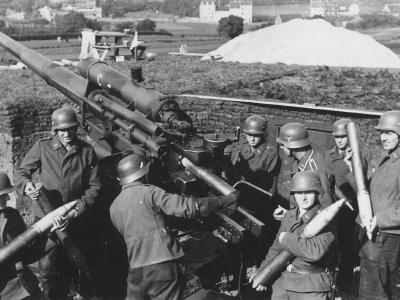

- Flak 88 AA gun ready to firing
-

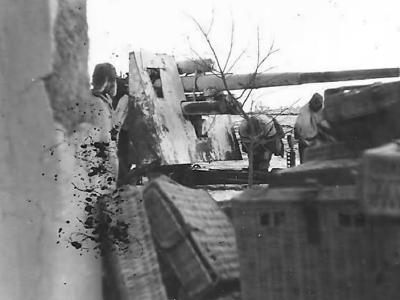

- Flak 88 Regiment 24 Artemowsk Winter 1941
-

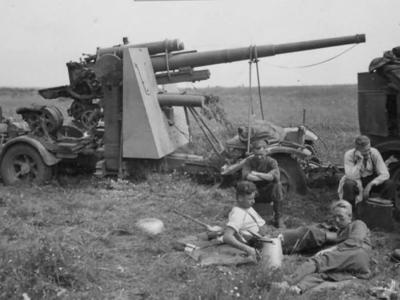

- Flak 18 on Sd Anh 201 chassis
-

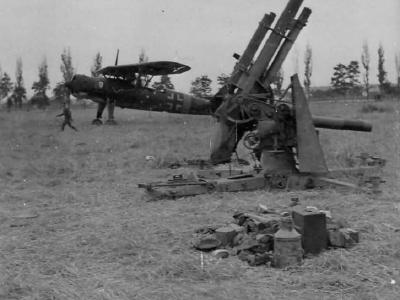

- Hs126 and Flak 88 eastern front
-

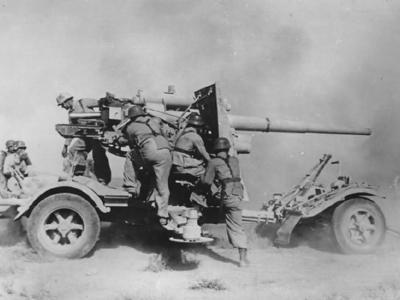

- Flak 18 88 DAK Afrika korps 1941
-

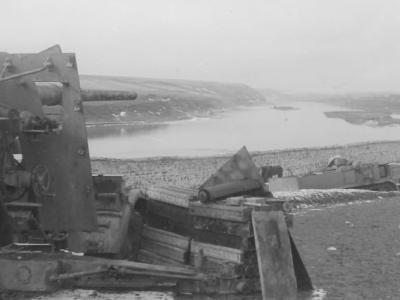

- Don near Rostow 8.8 cm Flak 1943
-
- Flak 88 and dog
-

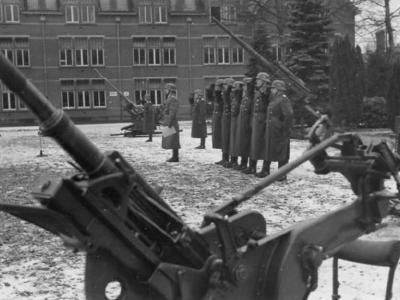

- anti aircraft gun Flak 88 cerremony
-

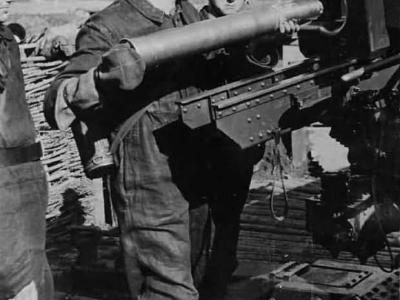

- Flak 88 crew in action
-

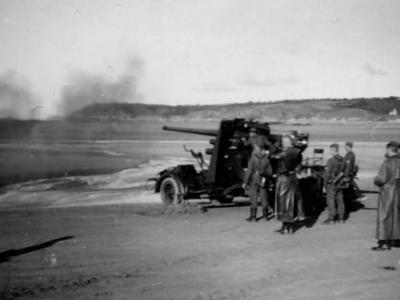

- Flak 88 in action 2
-
- Flak 88mm anti aircraft guns
-

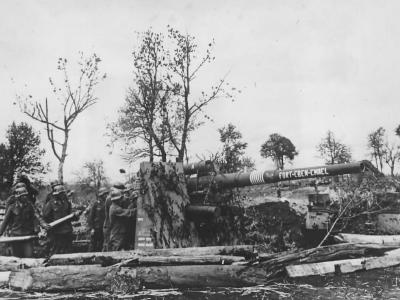

- Flak 88 Fort Eben Emael
-
- Luftwaffe Crew by 8.8cm Flak Gun with rings on barrel
-

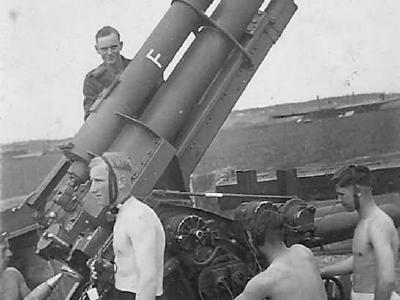

- Flak 88 mm eastern front
-

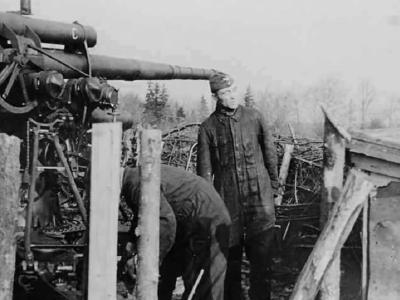

- Flak 88 anti aircraft gun 15
-

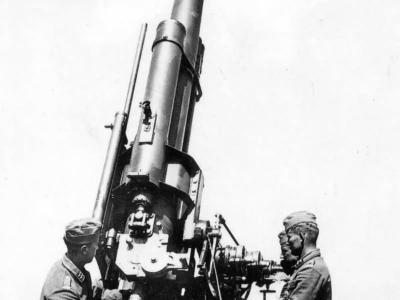

- Flugzeugabwehrkanone Flak 88
-

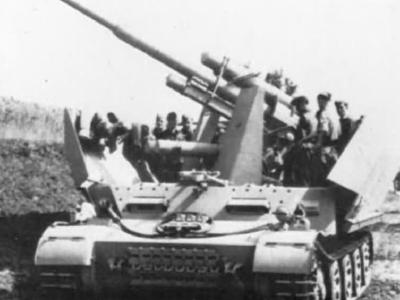

- Flak Mobile 88 cm Flak
-

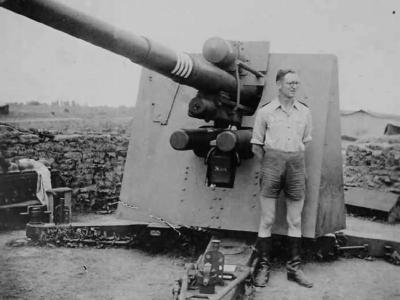

- 88mm flak gun
-

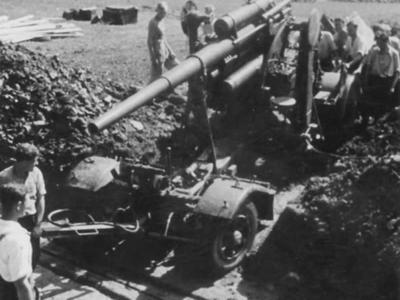

- Flak 18 88 cm AA gun
-

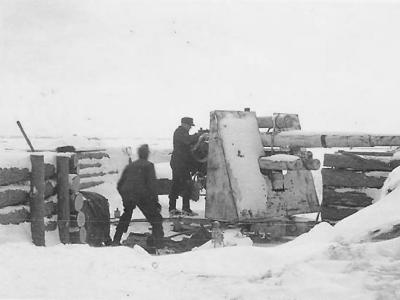

- Flak 88 in winter camo
-

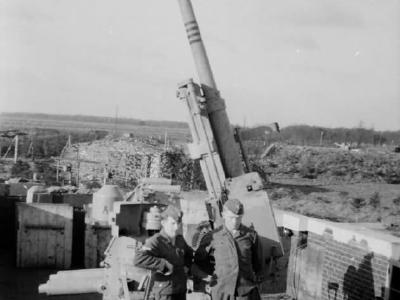

- Flak 88 anti aircraft gun
-

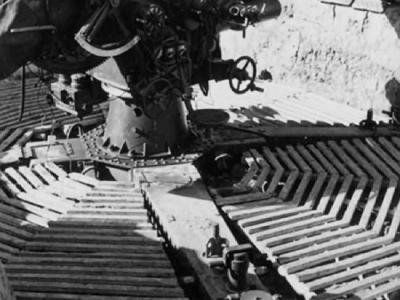

- Flak 88 mm AA gun
-

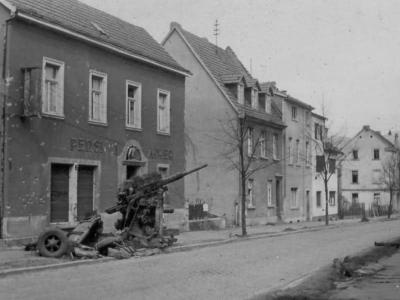

- Flak 88 germany 1945
-

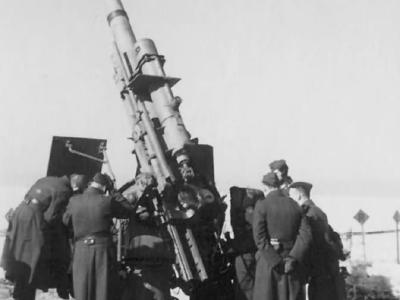

- German Flak gun
-
- Flak 36 1944 France
-

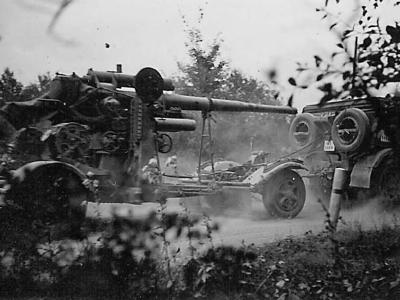

- German Flak 88 anti aircraft gun
-

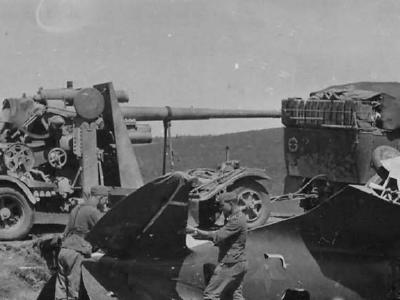

- Flak 18 eastern front 1941
-

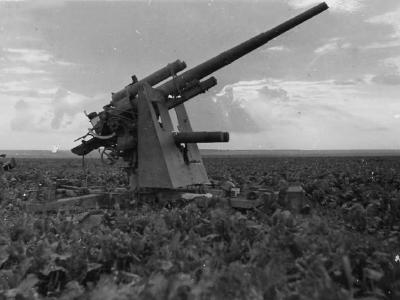

- Flak 88 in firing position eastern front
-

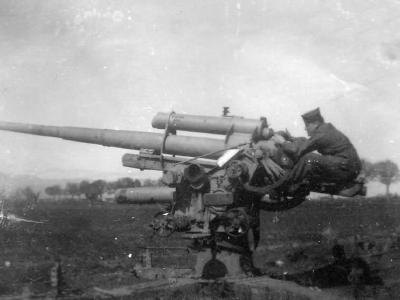

- Captured German Flak 88 Marseille France
-

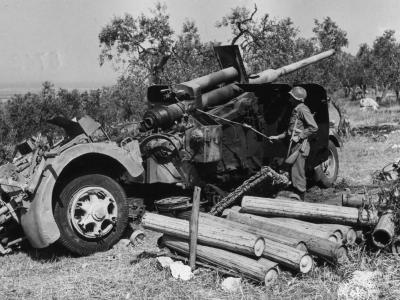

- Flak 88 mm gun with ammo in Italy 1944
-
- Flak 18 88 mm anti aircraft gun 10
-
- Flak 88 world war 2 artillery
-

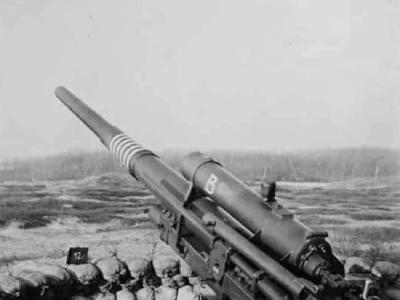

- 88mm flak AA gun
-
- Flak 18 88 mm anti aircraft gun 5
-

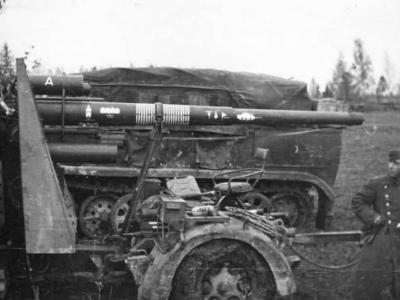

- Flak 36 88 mm gun and halftrack
-

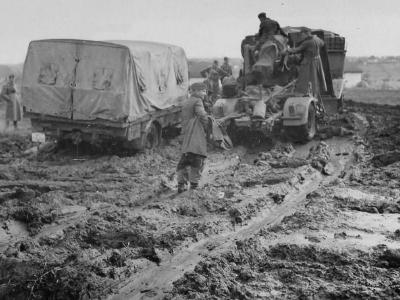

- Flak 18 88 cm Russia 2
-
- Flak 88 in anti tank position winter
-
- Flak 88 AA gun ready to firing against aircraft
-

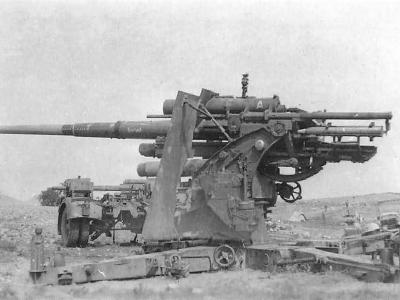

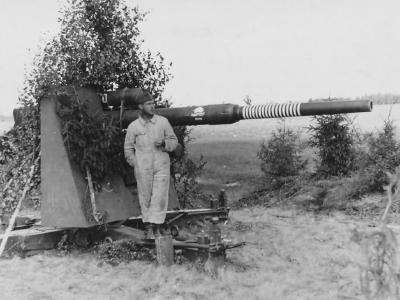

- Flak 88 wwii artillery
-

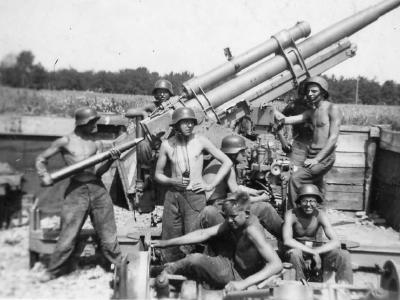

- Flak 88 and gun crew
-

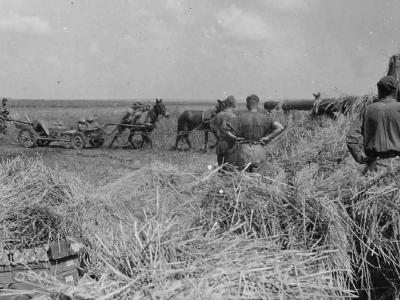

- camouflaged Flak 88 Russia
-

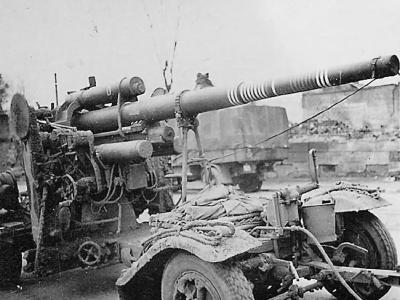

- Flak 18 8,8cm Flak gun with killrings painted around the barrel
-

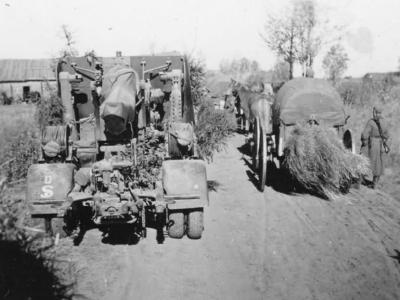

- Flak 88 anti aircraft gun 14
-
- Flak 88 gun ready to firing against aircraft
-
- Flak 88 anti aircraft gun 8
-

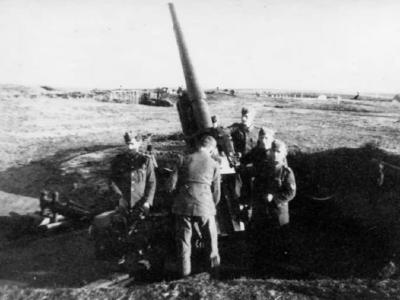

- 88 cm Flak 18 anti aircraft gun
-

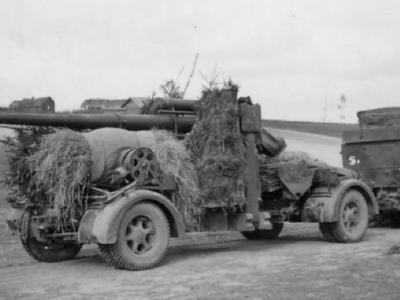

- Flak 88 towed behind an halftrack
-

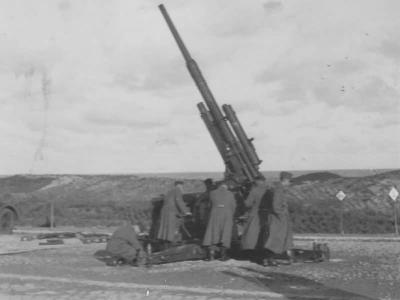

- Flak 88 anti aircraft gun 9
-
- Flak 88 anti aircraft gun 3
-

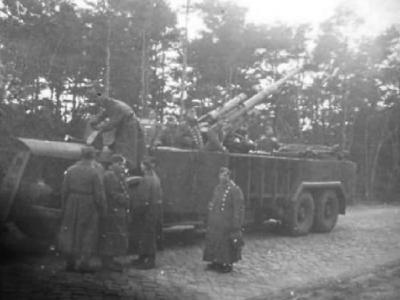

- Flak 8,8 cm auf Vomag Fahrgestell 2
-

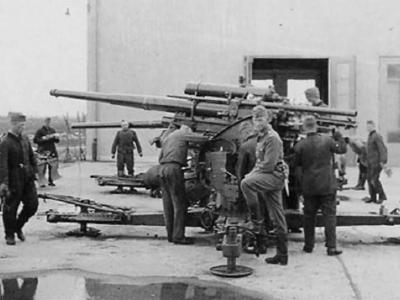

- German Flak 18 88 mm anti aircraft artillery 2
-

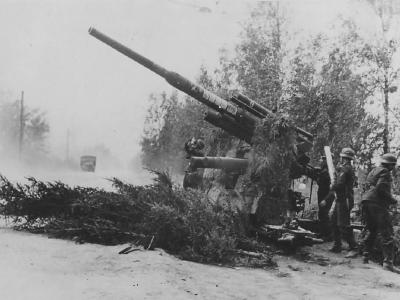

- Flak 88 in action
-

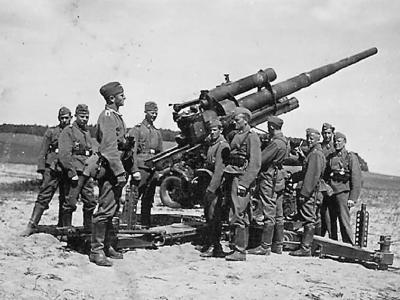

- anti aircraft gun Flak 88
-

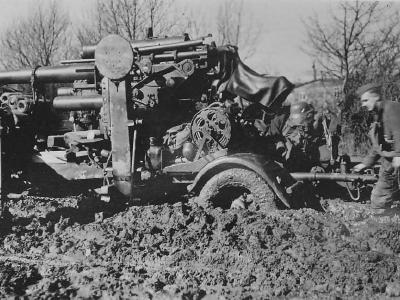

- 8,8 cm Flak 18 eastern front
-

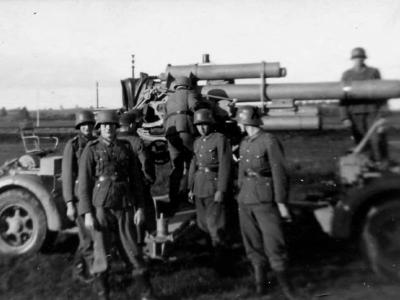

- 8,8 cm Flak 36 crew
-
- Flak 18 8,8 cm Russia
-

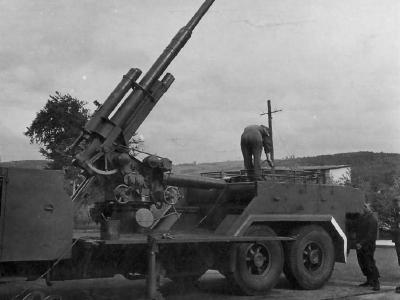

- Vomag 88mm Flak 18 Waffentrager
-
- Flak 18 8,8 cm gun towed
-

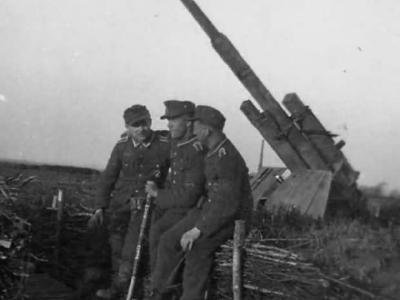

- Flak 88 ready to firing against aircraft
-
- German 88 mm Artillery Flak 88
-

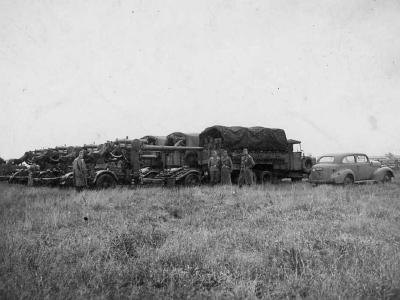

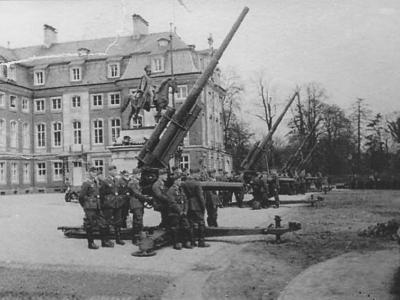

- Flak 18 88 mm anti aircraft guns
-
- Flak 8,8 cm auf Vomag Fahrgestell
-
- Flak 18 88mm gun
-

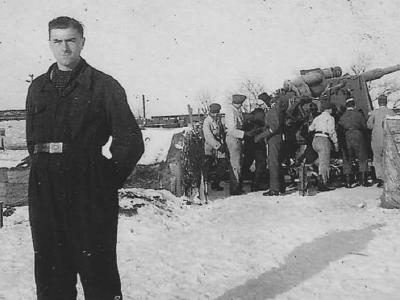

- Flak 88 mm in firing position
-

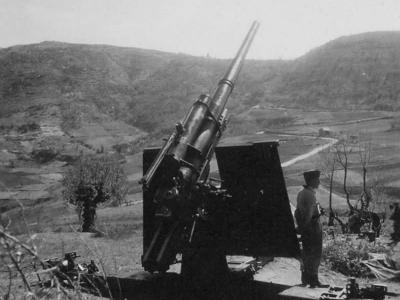

- Flak 88 Greece
-

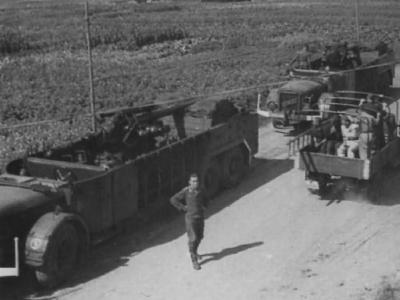

- 8,8 cm Flak auf Vomag Fahrgestell
-

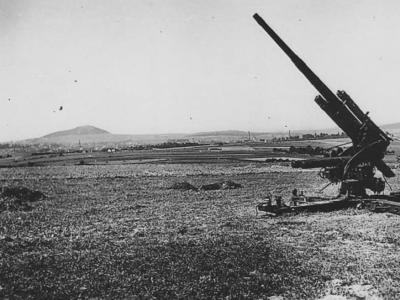

- Flak 88mm anti aircraft gun
-

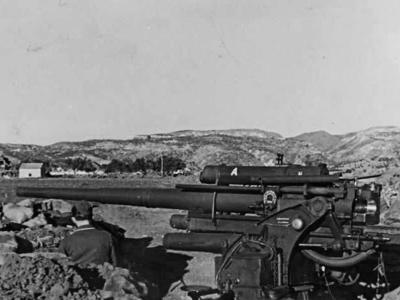

- Flak 88 in anti tank position
-
- Flak 18 88 mm anti aircraft gun
-
- Flak 8,8 cm Flak Crew Paint Victory Kill Rings
-

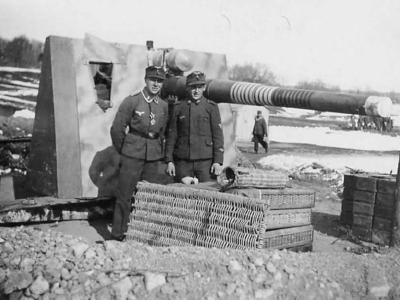

- Flak 88 victory rings on the gun barrel
-

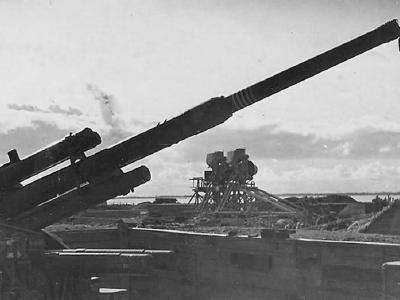

- Flak 88 mm with 5 killrings painted around the barrel
-

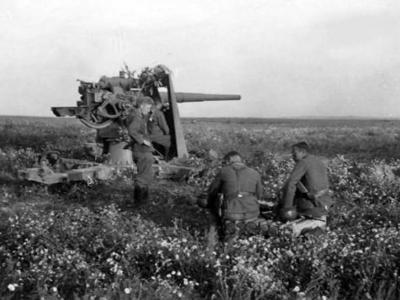

- Flak 88 in anti tank position 2
-

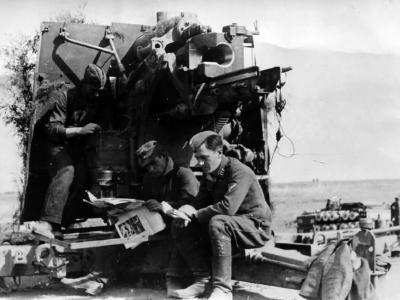

- Flak 88 crew
-

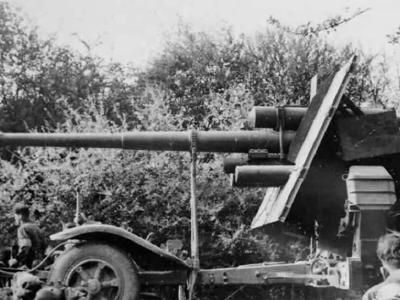

- Flak 18 88 30
-

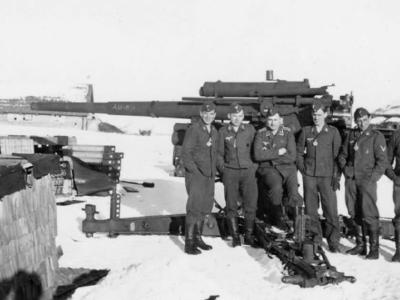

- Flak 88 eastern front winter 1941
-

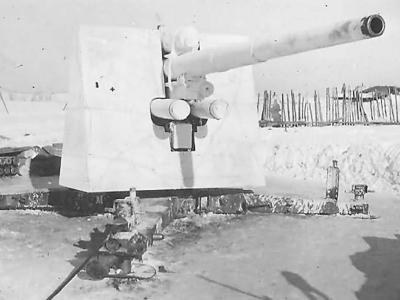

- Flak 88 Flak Regiment 4 Winter Rshew eastern front
-

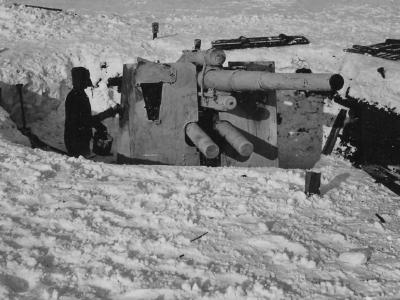

- Flak 88 in anti tank position eastern front
The 88 mm Flak gun (commonly called the “Acht-Acht”) was a German anti-aircraft and anti-tank artillery gun from World War 2.
Production: 21310 guns.
Specifications:
version |
Flak 18 |
Flak 36 |
Flak 41 |
crew |
10-11 |
11-12 |
12 |
armor |
front (shield): 10 mm |
front (shield): 10 mm |
front (shield): 10 mm |
calibre |
88 mm |
88 mm |
88 mm |
barrel lenght (mm) |
4930 |
4930 |
6548 |
rifled barrel length (mm) |
4124 |
4124 |
5411 |
muzzle velocity (m/s) |
820-840 |
820-840 |
1000 (AA shell), 1125 (AT) |
number of riflings |
32 |
32 |
|
rate of fire (per minute) |
15 |
15 – 20 |
22-25 |
combat weight (kg) |
4986 |
5000 |
7800 -8000 |
ready to transport weight (kg) |
7000 |
7200 |
|
ready to transport with trailer weight (kg) |
7400 |
7650 |
11200 |
length in combat mode (mm) |
5800 |
5800 |
|
width in combat mode (mm) |
5140 |
5185 |
|
height in combat mode (mm) |
2100 |
2120 |
|
length in transport (mm) |
7700 |
7720 |
9658 |
width in transport (mm) |
2190 – 2300 |
2320 |
2400 |
height in transport (mm) |
2400 |
2400 |
2380 |
maximun ceilling (m) |
9900 |
10600 |
19800 |
maximun range horizontal (m) |
14680 |
14700 |
|
elevation (°) |
-3 / +85 |
-3 / +85 |
-3 / +90 |
traverse (°) |
360 |
360 |
360 |
Time into action (s) |
150 |
150 |
|
Time into transport (s) |
210 |
210 |
|
chassis |
Sd. Anh. 201 or 202 |
Sd. Anh. 202 |
Sd. Anh. 202 or 203 |
