Hummel (Panzerfeldhaubitze 18M auf Geschützwagen III/IV (Sf) Hummel, Sd.Kfz. 165, Gerät 807) was a self-propelled heavy howitzer based on the Geschützwagen III/IV chassis, armed with a 15 cm howitzer. It was used by the German Wehrmacht during the Second World War from late 1942 until the end of the war.
Specifications:
-
- Munitionstrager Hummel
-
- Hummel ammo reloading
-
- Hummel 1943
-

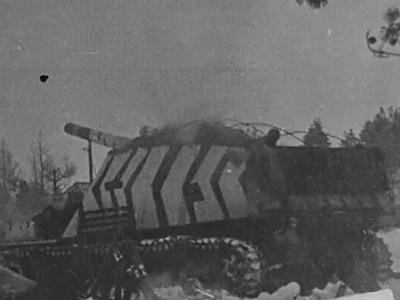

- Hummel with winter camo
-
- Hummel of the 366 Guards Heavy Self-Propelled Artillery Regiment
-
- Hummel 504
-

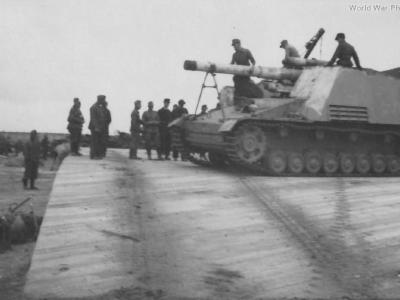

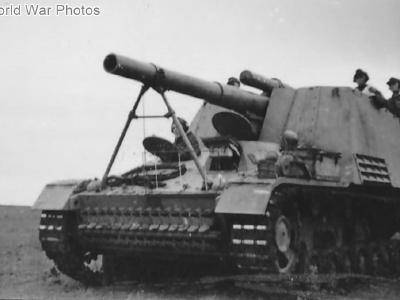

- Hummel 1944 2
-

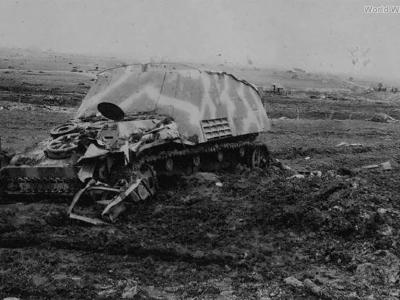

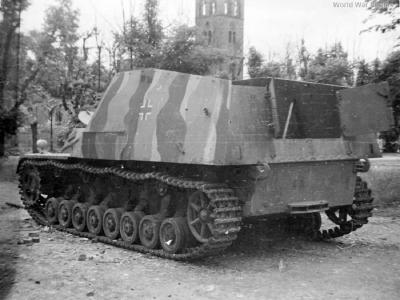

- Hummel ammunition carrier
-

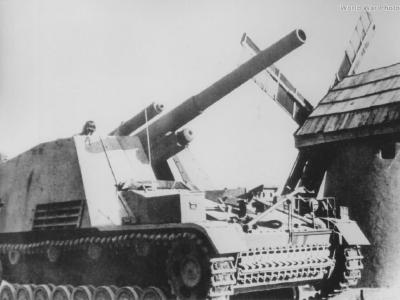

- Hummel artillery
-

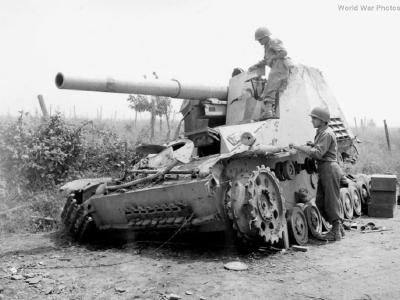

- Hummel of Panzer-Artillerie-Regiment “Hermann Göring”
-

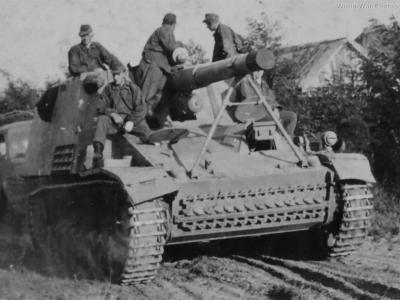

- Hummel of SS-Panzer-Artillerie-Regiment 1 “Leibstandarte Adolf Hitler”
-
- ammunition carrier Hummel – rear
-

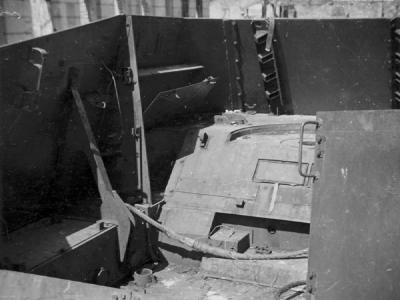

- ammunition carrier Hummel 2
-

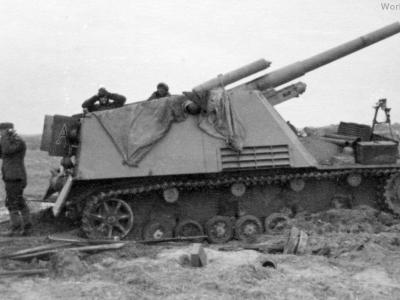

- Panzerhaubitze Hummel
-

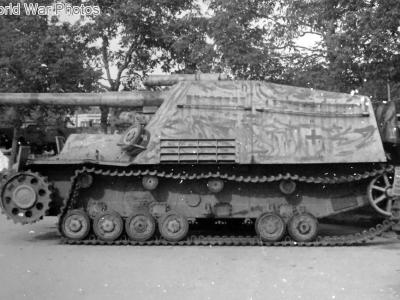

- Moscow 1943 Soviet exhibition of captured German equipment
-

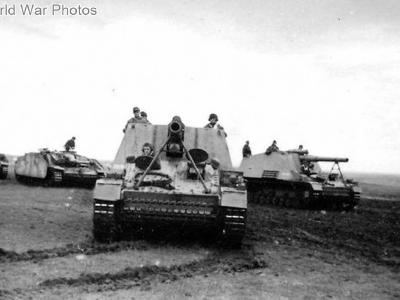

- Hummels and StuG 40 1944
-

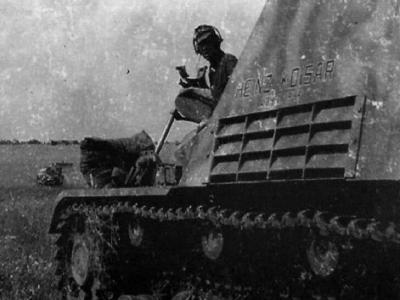

- Hummel named Heinz Koisar 1943
-

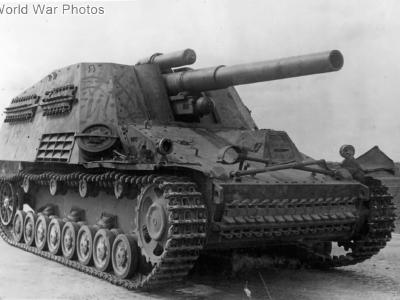

- Captured Panzerhaubitze Hummel 4
-

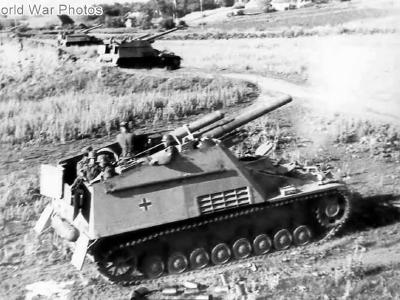

- Early Hummels 2
-
- Captured Hummel 3
-
- Captured Hummel 2
-

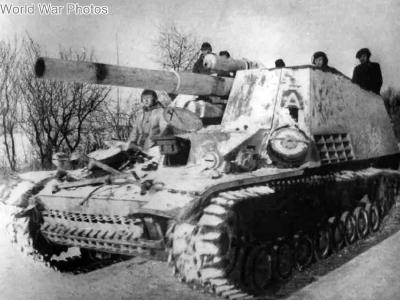

- Hummel Panzerhaubitze coded A with winter camouflage
-

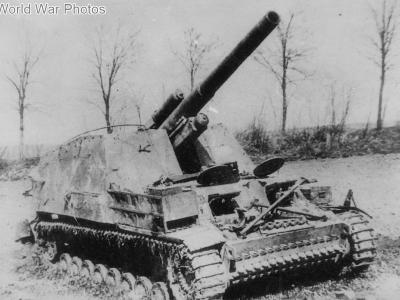

- Destroyed late Hummel 2
-

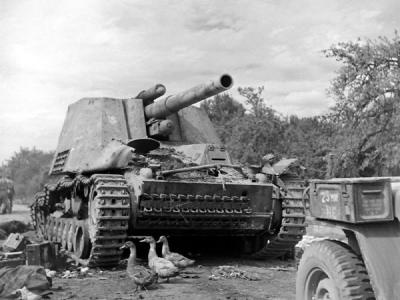

- Early Hummel howitzer
-
- Hummel howitzer 1944
-

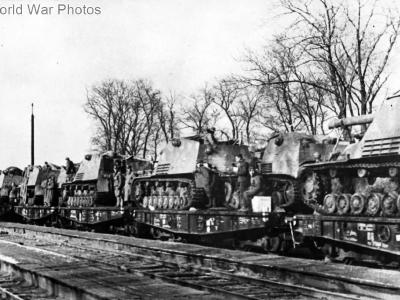

- Railway transport of the Hummel guns
-

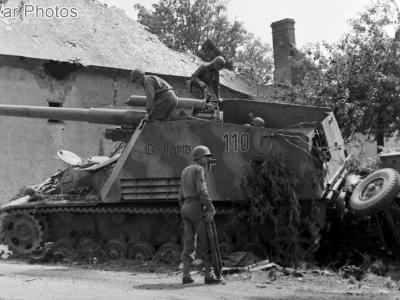

- Hummel named Clausewitz Normandy, Summer 1944
-
- Crew atop a Hummel
-

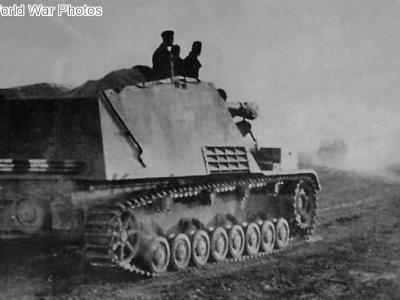

- Hummel howitzer rear view
-
- A prototype of the Hummel
-

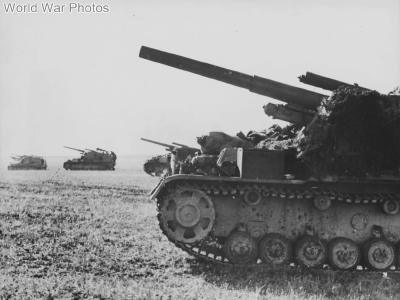

- Hummel howitzers at Kuban
-

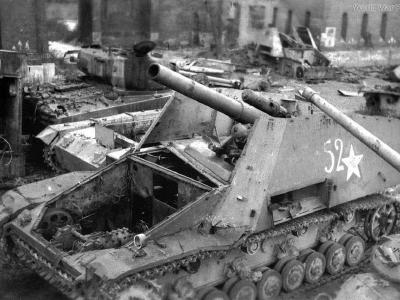

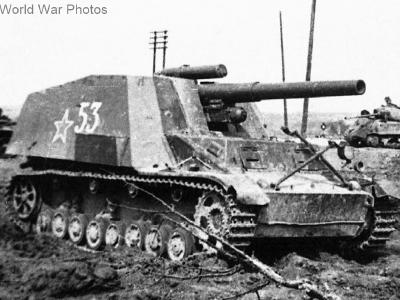

- soviet Hummel “53” of the 366th Guards S.P. Artillery Regiment
-

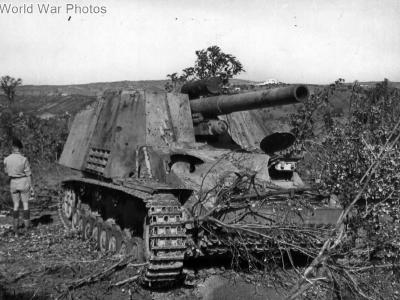

- Destroyed Hummel of the 26 Panzer Division Italy 1944
-

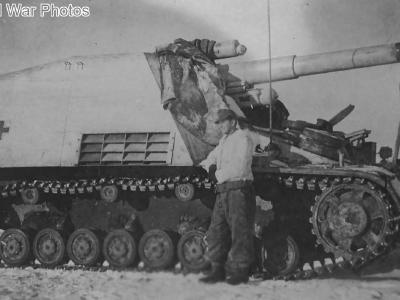

- Self-propelled gun Hummel winter
-

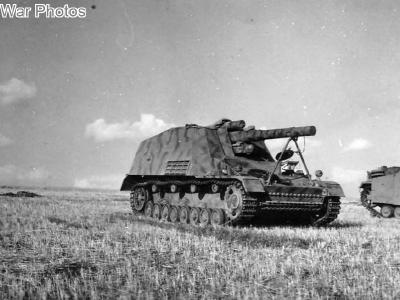

- Hummel and StuG 40
-
- Panzerfeldhaubitze 18M auf Geschützwagen III/IV (Sf) Hummel
-

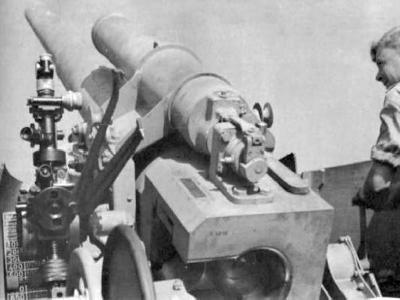

- Hummel 150 mm sFH 18/1 howitzer
-
- Panzerhaubitze Hummel crew eastern front 1943
-
- Panzerhaubitze Hummel eastern front 1943 crew
-
- Hummel Sd.Kfz. 165 15cm schwere Panzerhaubitze auf Geschsutzwagen III/IV (Sf)
-

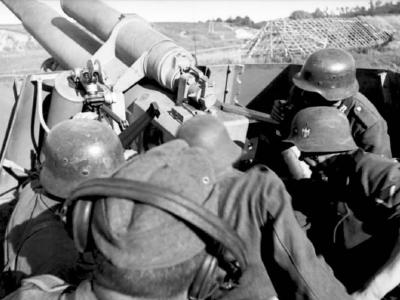

- Panzerhaubitze Hummel eastern front 1943 crew in action
-

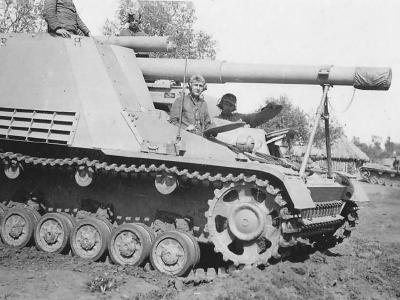

- 15 cm schwere Panzerhaubitze auf Geschsutzwagen III/IV (Sf) Hummel
-

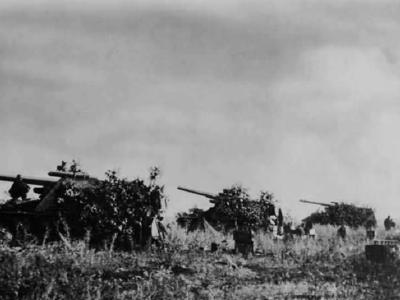

- Hummel howitzers ready for firing
-

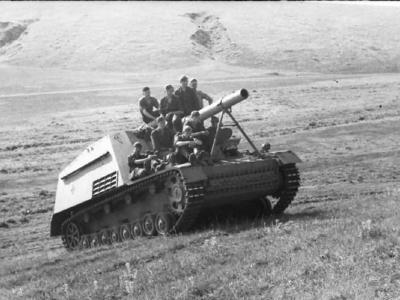

- Panzerhaubitze Hummel eastern front 1943
-

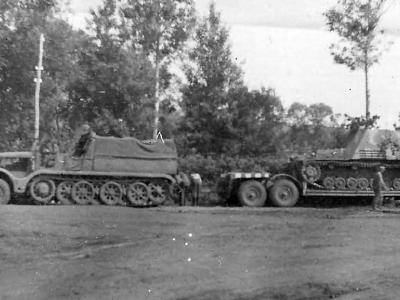

- Munitionstrager Hummel on trailer + Sd.Kfz. 9 Famo
-

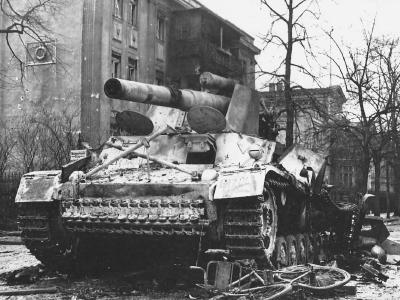

- destroyed Hummel gun in Berlin 1945
-
- Hummel 15cm Panzer Haubitze rail transport
-

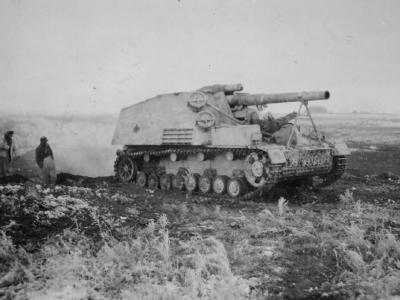

- Hummel 150 mm howitzer Ukraine Nikopol
-

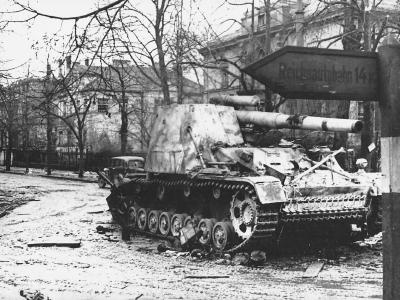

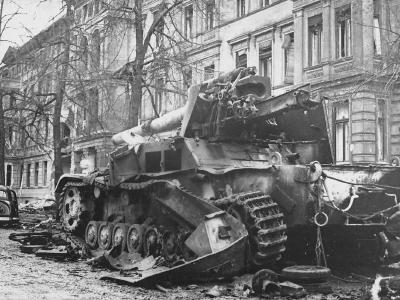

- Hummel in Berlin 1945
-
- Hummel destroyed by internal explosion, Berlin 1945
-

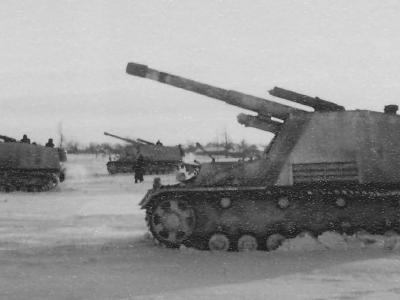

- German self propelled artillery Hummel in field
-

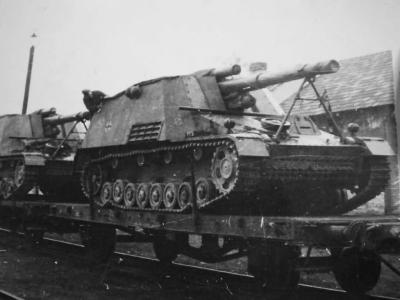

- Hummel from 1st SS Panzer Division “Leibstandarte SS Adolf Hitler”
-

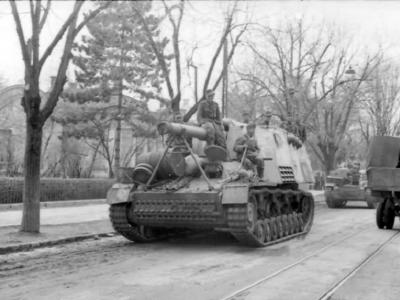

- Hummel self propelled artillery
-

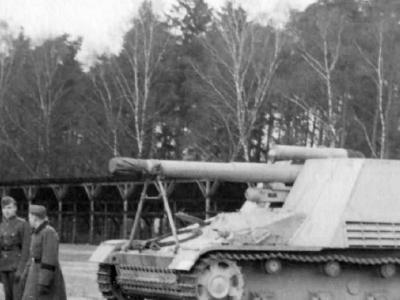

- Hummel self propelled 150 mm heavy field howitzer
-

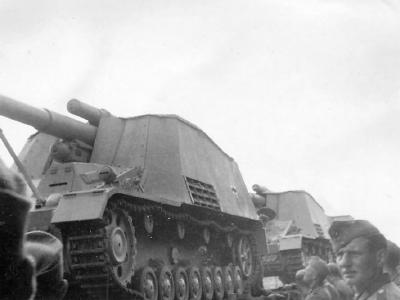

- Hummel german self propelled artillery
-
- Hummel with winterketten tracks, eastern front 1944
-
- German howitzer Hummel
-
- Hummel self-propelled artillery SdKfz 165
-
- Hummel rail transport in winter
-
- Hummel Panzerfeldhaubitze 18M auf Geschützwagen III/IV (Sf), Sd.Kfz. 165
-
- Hummel photo
-

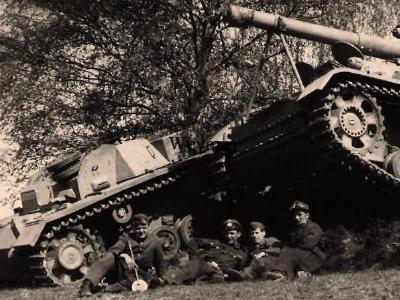

- StuG III and Hummel Fahrschule variant
-

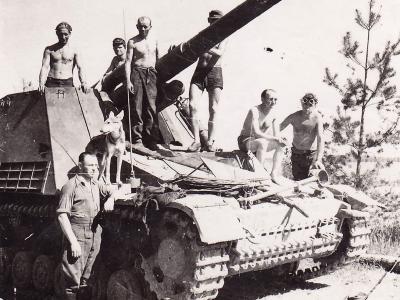

- Hummel 12 Panzer Division 1944 Kurland
-
- Hummel and crew
-

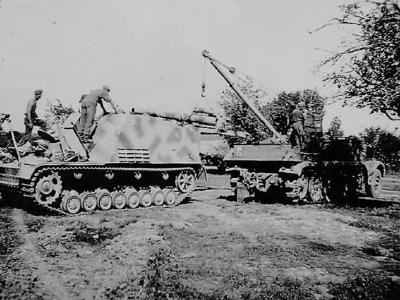

- Hummel gun replacement
-

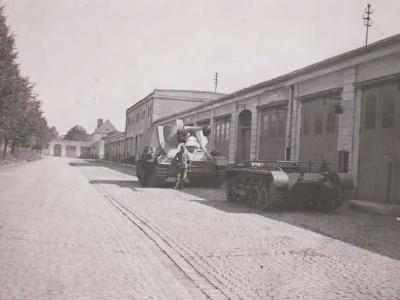

- 8,8cm PaK 43/1 L/71 auf Gsw III/IV (Sf) SdKfz 164 „Nashorn – Hornisse”
-

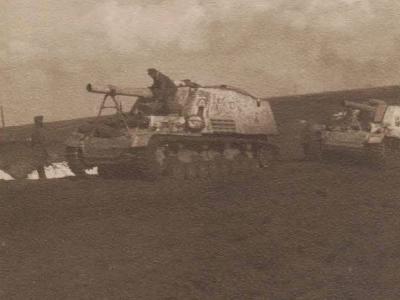

- Self-propelled artillery Hummel winter camouflage
-

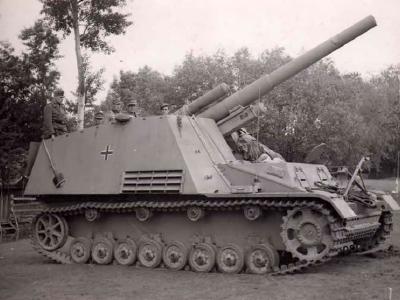

- Hummel self propelled gun, late version
-

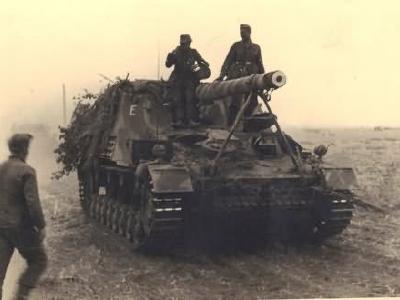

- Hummel “E” on road
Hummel (Panzerfeldhaubitze 18M auf Geschützwagen III/IV (Sf) Hummel, Sd.Kfz. 165, Gerät 807) was a self-propelled heavy howitzer based on the Geschützwagen III/IV chassis, armed with a 15 cm howitzer. It was used by the German Wehrmacht during the Second World War from late 1942 until the end of the war.
Specifications:
crew |
7 |
armor |
hull:front: 30 mm, side: 20 mm, rear: 20 mm, top: 15 mm
turret: front, sides and rear: 10 mm |
mainarmament |
15 cm sFH 18/1 L/30 (18 rounds); traverse: 13° left and 15° right; elevation: -3° – +42°; range: 12250 m |
secondaryarmament |
1 x MG34/42; 2 x MP40 |
weight (kg) |
23458 |
length (mm) |
8440 |
length (mm) |
7170 |
width (mm) |
2950 |
height (mm) |
2940 |
track base (mm) |
2450 |
ground pressure (kg/cm2) |
0,85 |
engine |
Maybach HL 120 TRM, 300 hp at 3000 rpm. 12 cylinder, liquid-cooled, gasoline 11867 cm3 |
transmission |
ZF SSG 77, 6 forward, 1 reverse |
fuel capacity (l) |
470 |
fuel consumption (l) (road / off road) |
200 / 350 |
range (road km/ off-road km) |
215 / 130 |
max speed (road/ off-road km/h) |
42 / 20-25 |
tracks |
400 mm |
ground contact length (mm) |
3800 |
number of links per trac |
104 |
ground clearance (mm) |
400 |
trench crossing (mm) |
2300 |
vertical obstacle (mm) |
600 |
fording ability (mm) |
800 |
climbing ability (degrees) |
30 |
turning circle (mm) |
5920 |
manufacturer |
Alkett, Deutsche – Eisenwerke Duisburg |
chassis numbers |
320001- ?, 325001 -? |
production: |
724 + 157 Munitionsträger carriers |
