Abandoned Matilda "Gorgon" T6747, PMV 103 of 7th Royal Tank Regiment, 23rd Armoured Brigade, France 1940

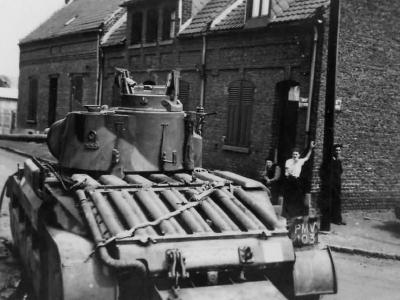

Abandoned Matilda France 1940

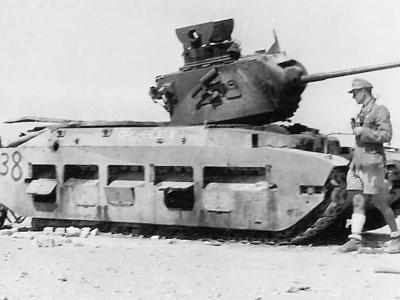

Afrika Korps Soldier Next to a KO British Matilda tank named CRUCIBLE II
Australian Matilda Tank Landed At Toko Beach 1945

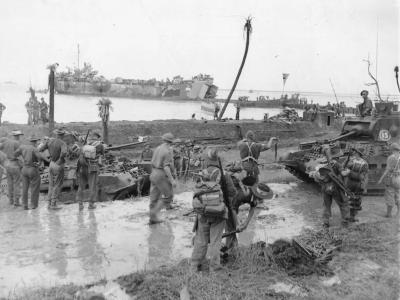

Australian Matilda Tanks of the 2/9th Armoured Regiment on Tarakan, 1 May 1945

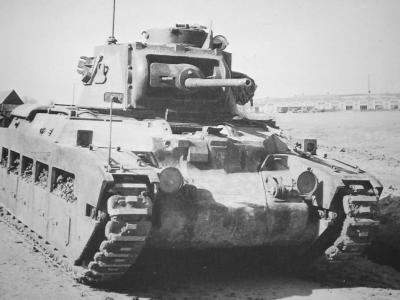

British infantry tank Matilda II

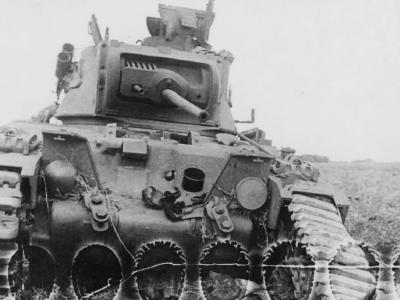

British infantry tank Matilda II - frontal view

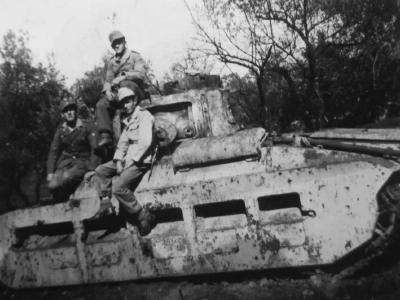

British infantry tank Matilda II 4

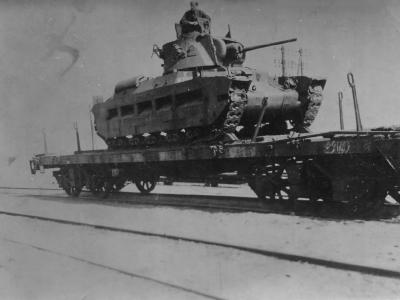

British infantry tank Matilda II on a railway flatcar

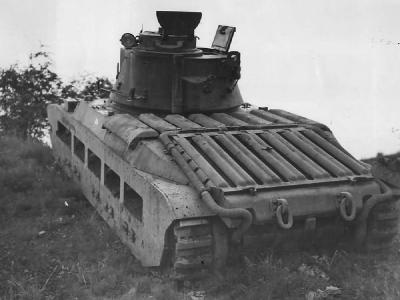

British Infantry Tank Mk II A12 Matilda II during demonstration 1941

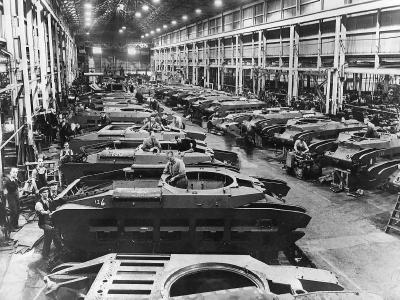

British Matilda Tank Assembly Line In Factory England 1941
British tank Matilda
British tank Matilda Mk II and Panzer III of Afrika Korps

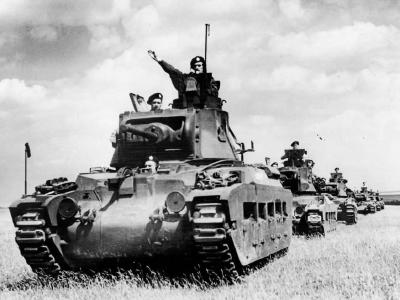

Canadian Matilda II Tank 1941

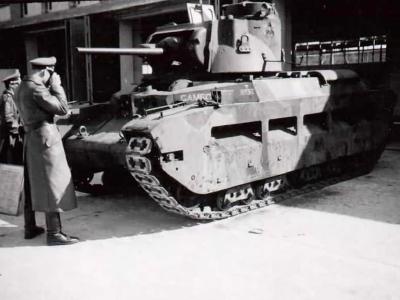

Captured Infantry Tank Mk.II (A12) Matilda II T6736 "GAMECOCK"

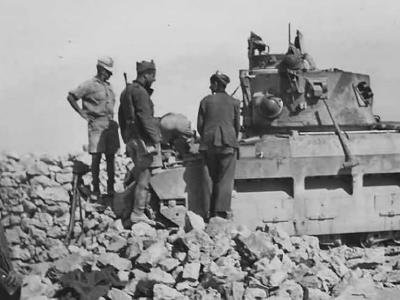

Captured Matilda DAK Afrika Korps

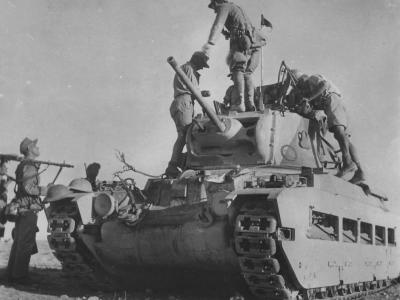

captured Matilda II tank North Africa

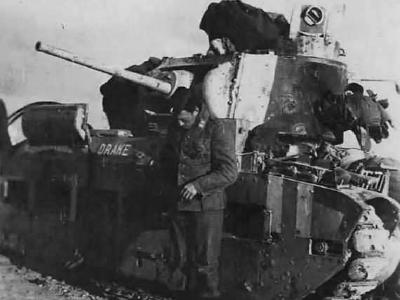

Captured Matilda named Drake, Western Desert

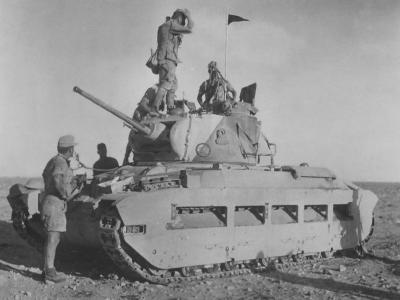

captured Matilda tank North Africa

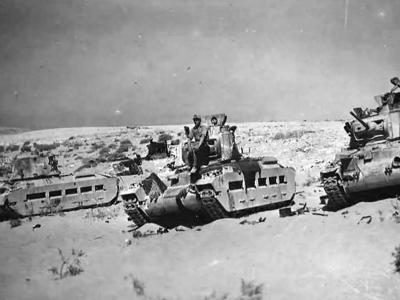

Captured Matilda tanks DAK Afrika Korps

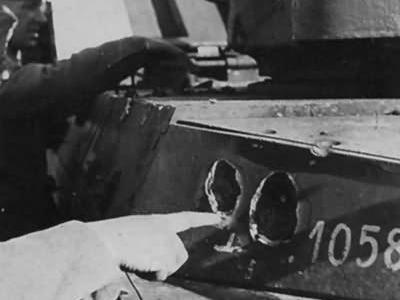

Damaged Infantry Tank Mk.II (A12) Matilda II 1058
Destroyed Matilda tank North Africa

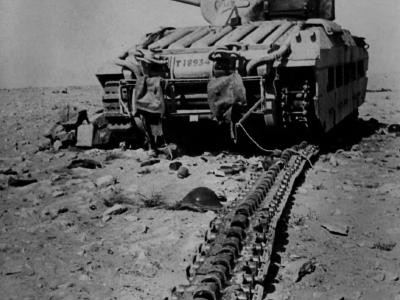

Destroyed Matilda tank T18934 - North Africa

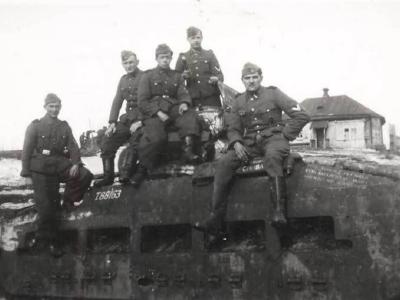

Ex-Soviet Matilda II tank T88163

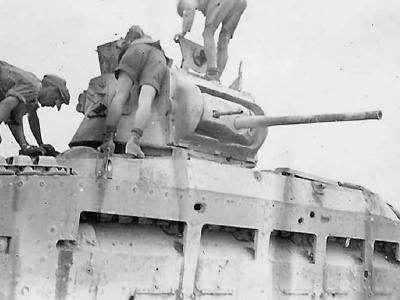

German Afrika Korps Troops with Destroyed British Matilda Mk II Tank

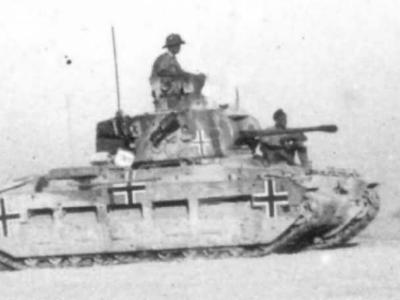

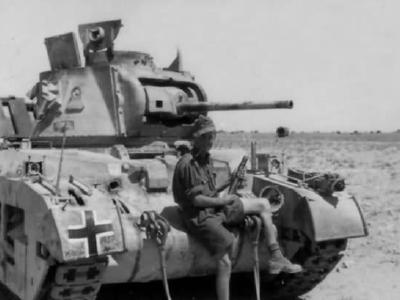

German Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II of the Afrika Korps
German Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II of the Afrika Korps - rear
German Matilda A12 Mk II tank

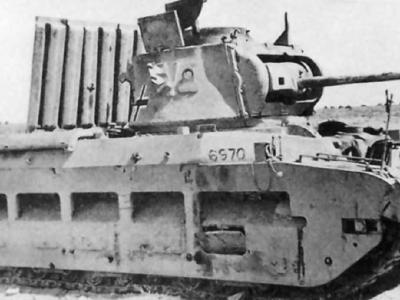

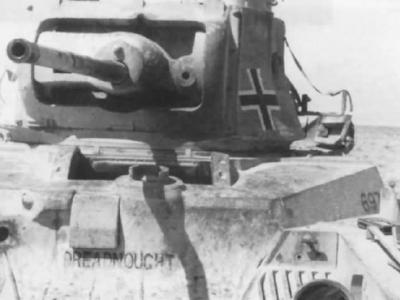

German Matilda A12 Mk II tank "Dreadnought" T6970

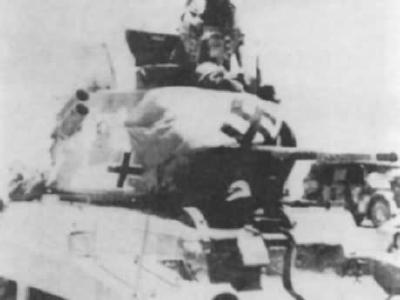

German Matilda A12 Mk II tank 2

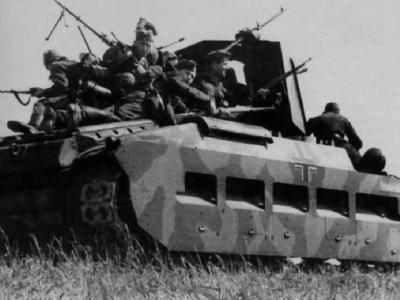

German Matilda A12 Mk II tank 3

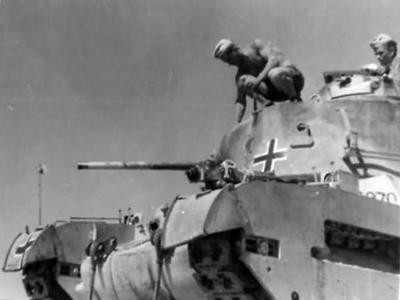

German Matilda A12 Mk II tank 4

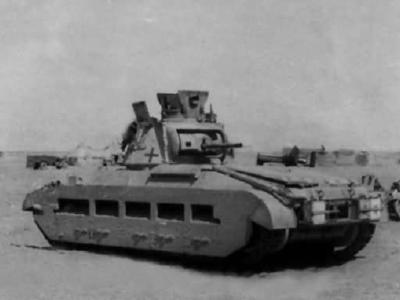

German Matilda A12 Mk II tank 5

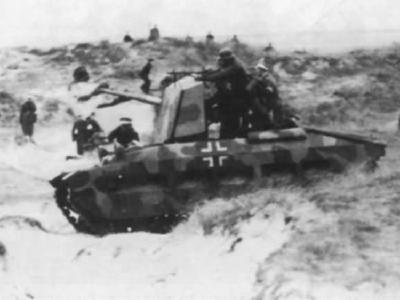

German Matilda A12 Mk II tank 6

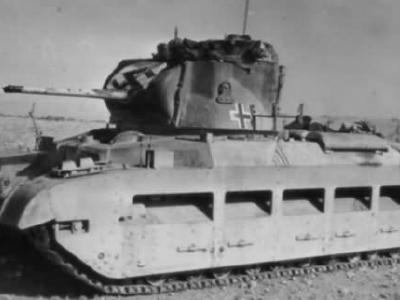

German Matilda A12 Mk II tank 8

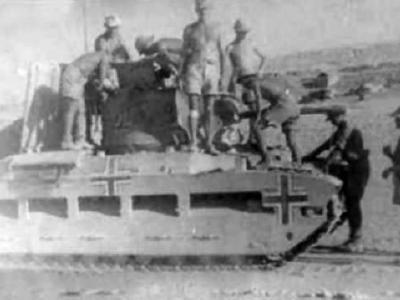

German Matilda A12 Mk II tank 9
German Matilda A12 Mk II tank named Dreadnought T6970

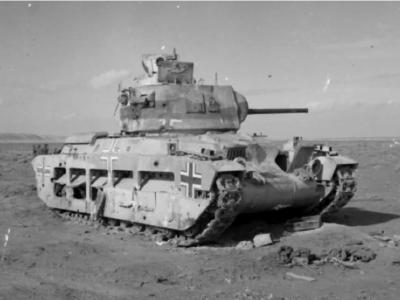

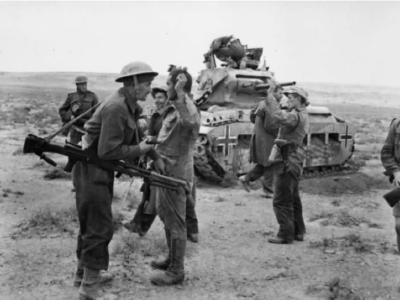

German Matilda A12 Mk II tank north africa
German Matilda A12 Mk II tank North Africa

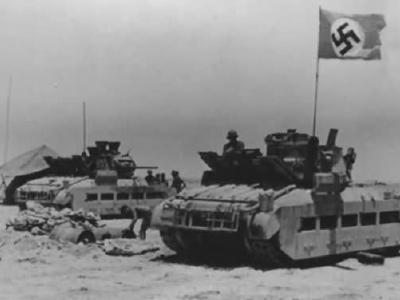

German Matilda A12 Mk II tanks
German Matilda tank
German Matilda tank

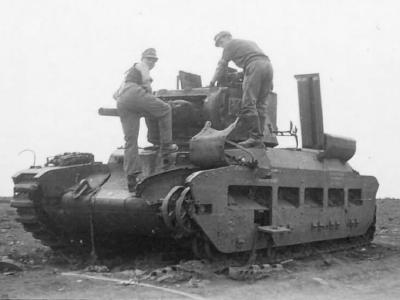

German soldiers inspect a British-built InfantryTank Matilda on Eastern Front

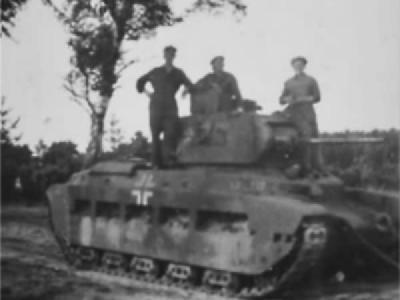

Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II 3
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II 4

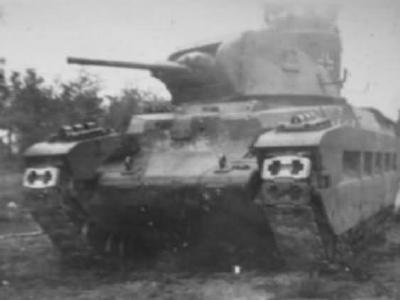

Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II 9
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II and Panzer I of the Afrika Korps
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II of the Afrika Korps 10

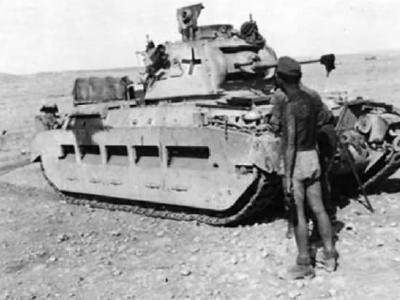

Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II of the Afrika Korps 2

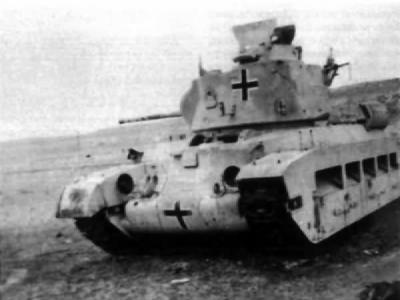

Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II of the Afrika Korps 3

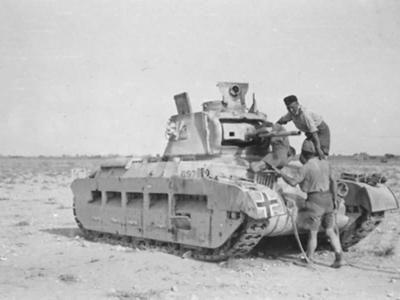

Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II of the Afrika Korps 4

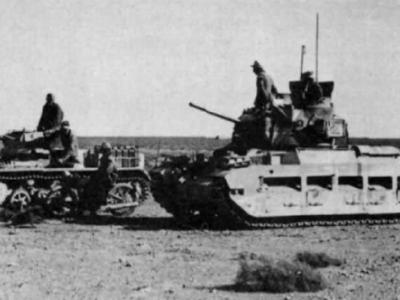

Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II of the Afrika Korps 5
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II of the Afrika Korps 6
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II of the Afrika Korps 7

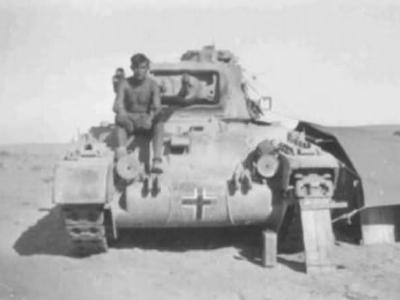

Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II of the Afrika Korps 8
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II of the Afrika Korps 9
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II of the Afrika Korps 9
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II of the Afrika Korps with German flag

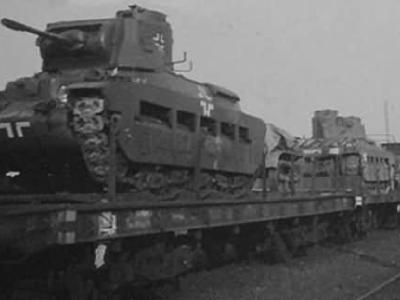

Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II rail transport
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II tank
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II tank
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II tank
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II tank 16

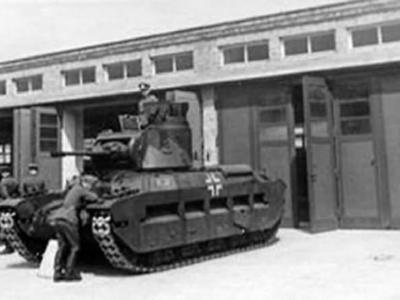

Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II tank 17

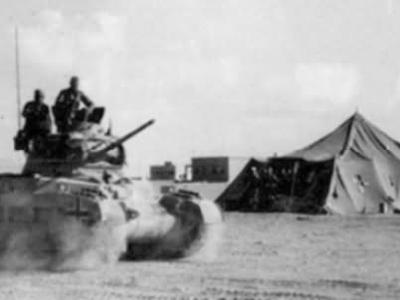

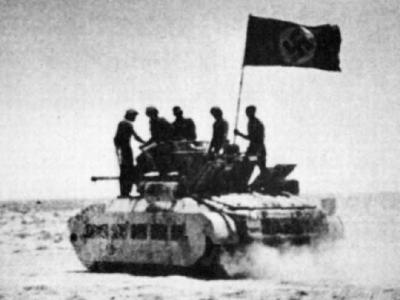

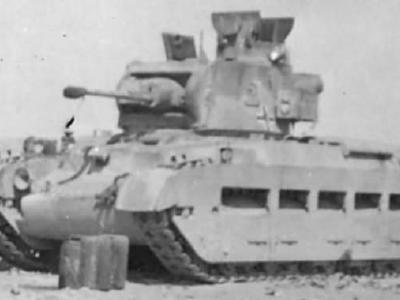

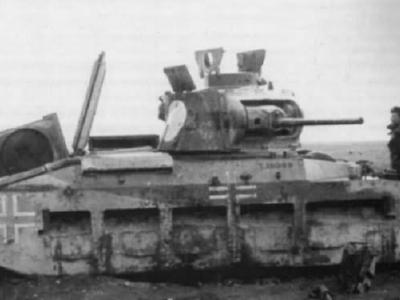

Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II tank of the Afrika Korps 11

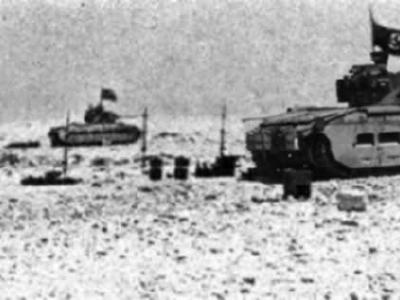

Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II tank of the Afrika Korps 12

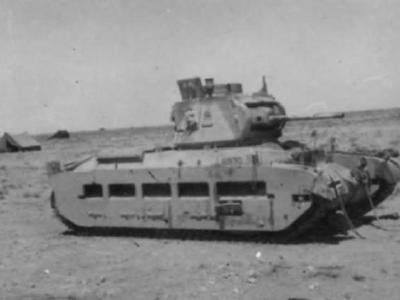

Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II tank of the Afrika Korps 13
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II, North Africa
Infanterie Panzerkampfwagen Mk.II 748(e) Matilda II, rear view
Infantry Tank Matilda

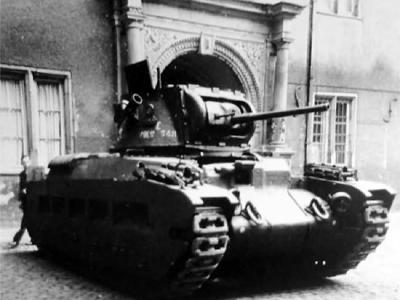

Infantry tank Matilda A12 Mk II
Infantry Tank Mk.II (A12) Matilda II on German trailer

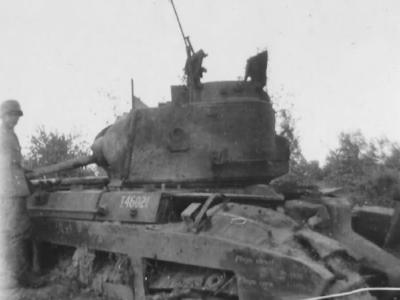

Lend Lease Matilda II Russia 1942 T46021
Lend Lease Matilda II tank Russia 1942

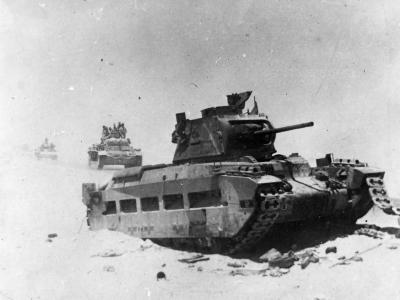

Matilda 1941 North Africa

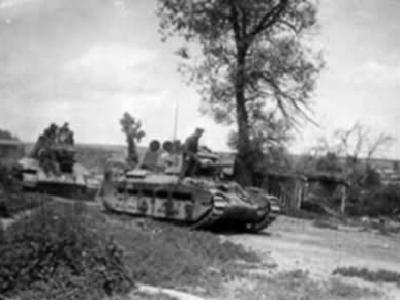

Matilda and T-34 tanks - Eastern Front
Matilda Greenock 1940

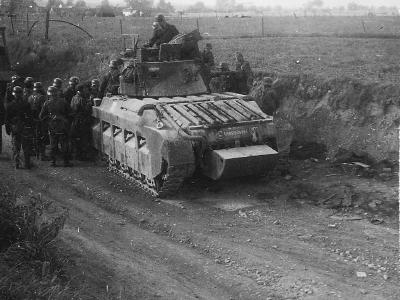

Matilda II named Grasshopper T6754 of 7th Royal Tank Regiment, 23rd Armoured Brigade

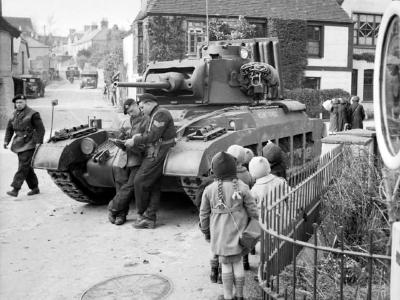

Matilda II Tank A12 England 1941

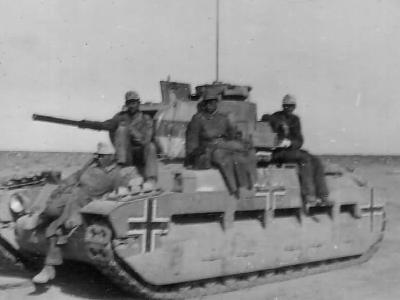

Matilda II tank of Afrika Korps DAK

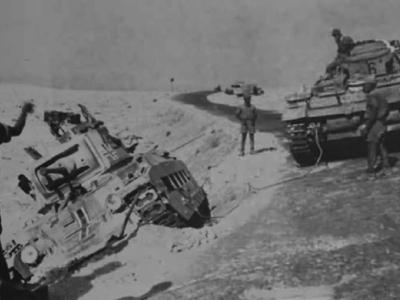

Matilda mk ii tank in german service North Africa

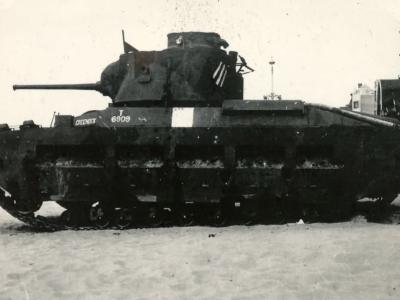

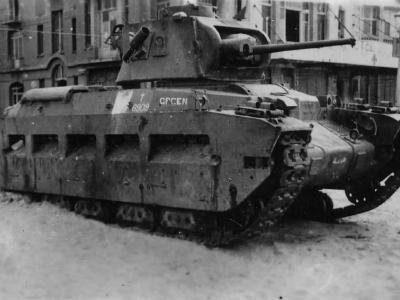

Matilda named "Greenock" T6909 of 7th Royal Tank Regiment, 23rd Armoured Brigade, France 1940

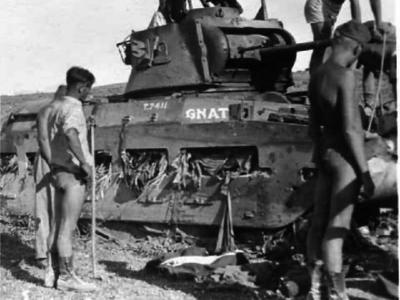

Matilda T7411 named Gnat of 7th Royal Tank Regiment, 23rd Armoured Brigade, Crete 1941
Matilda tank
Matilda tank 12

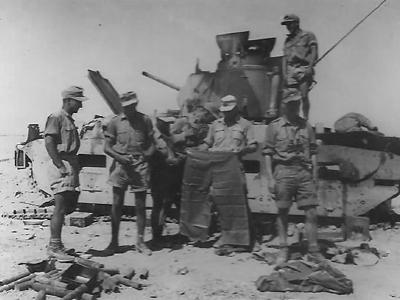

Matilda tank and DAK soldiers
Matilda tank in France 1940

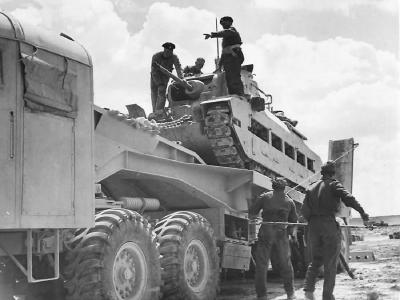

Matilda Tank Loaded for Transport North Africa Desert 1942

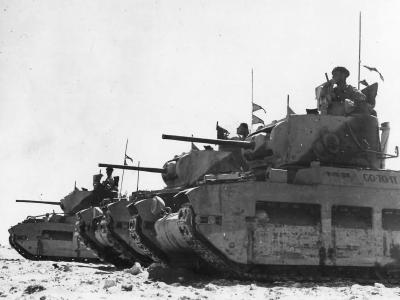

Matilda tank named "GO TO IT" T10128 of British 7th RTR near Tobruk

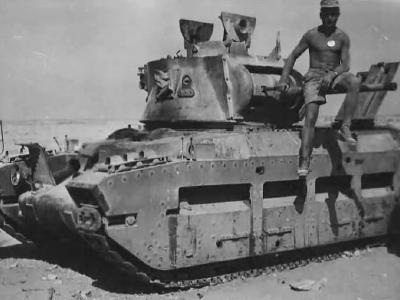

Matilda tank North Africa
Matilda tank on german trailer

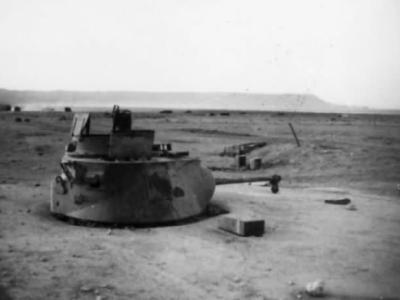

Matilda tank turret

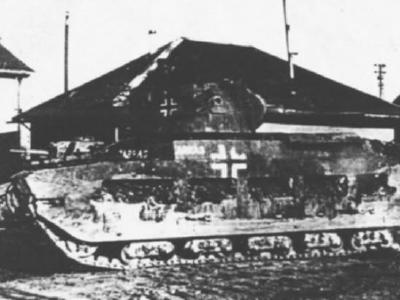

Matilda tank with German balkenkreuz

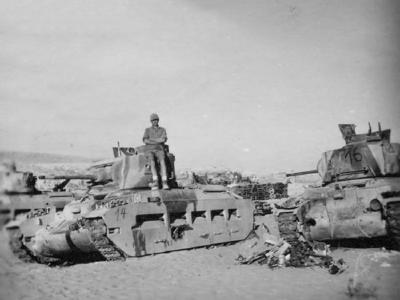

Matilda tanks North Africa

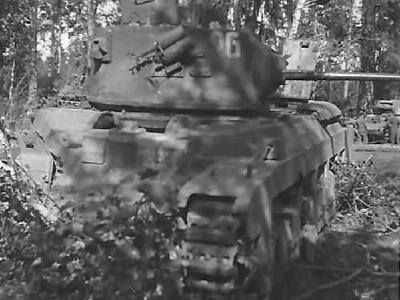

Russian Matilda tank Eastern Front

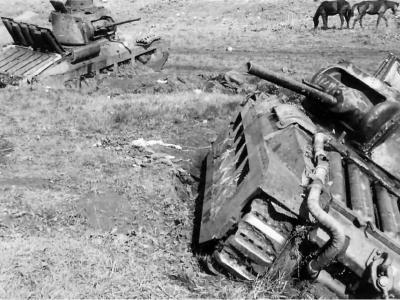

Russian Matilda tank number 25

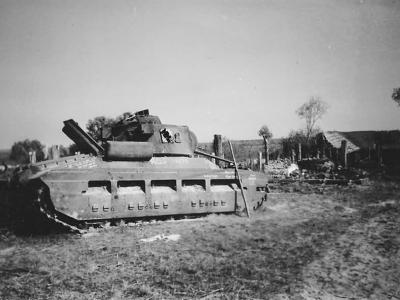

Soviet Matilda II tank Lend Lease code T35270

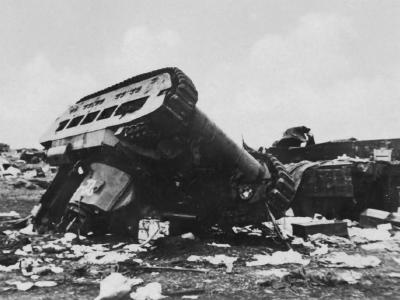

Soviet Matilda tank upside down

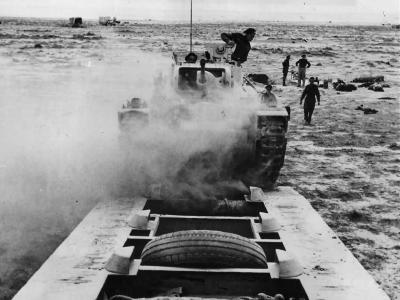

Transporter Brings in Matilda Tank for Repair from Middle East Desert 1942
Wehrmacht soldiers and British infantry tank Matilda II
Matilda II, by General Staff Specification A12, was a British infantry tank of the Second World War. Production: 2980 - 2987 tanks. Variants:
- Matilda II Mk I - First model armed with only a Vickers machine gun. Production: 140 - 165 tanks
- Matilda II Mk II
- Matilda II Mk III (Mk IIA, Mk II*) - new diesel engine (Leyland)
- Matilda II Mk IV (Mk II**)
- Matilda II Mk V
- Matilda II Close Support (CS) armed with QF 3 inch (76 mm) howitzer
- Matilda AMRA - Anti Mine Roller Attachment
- Matilda Carrot - anti mine variant
- Matilda Scorpion Mk I and II - mine flail. used in North Africa 1942 - 1943. Production: 24 + 32 .
- Matilda Baron Mk I, II, III, IIIA - mine flail.
- Matilda Bangalore
- Matilda II CDL (Canal Defence Light)
- Matilda With 76,2 mm Zis gun - Lend Lease Matilda supplied to the USSR
- Matilda with A27 turret
- Matilda Black Prince - radio-controlled prototype
- Matilda Restive - with Inglis bridge
- Matilda Trench Crossing Devise
- Matilda Carpet
- Matilda Fascine
- Matilda Dozer - australian bulldozer tank
- Matilda Frog - australian flame thrower tank
- Matilda Murray - australian flame thrower tank
- Matilda Projector (Hedgehog) - armed with spigot mortar
- German designation - Infanterie Panzerkampfwagen Mk II 748(e) Matilda II A12
Specifications:
| version | A12 Matilda II Mk II | A12 Matilda II CS (Close Support) |
| crew | 4 | 4 |
| armor | hull: front: 78-75 mm, sides: 70-40 mm, rear 55 mm, bottom: 20 and 13 mm, top: 20 mm turret: front: 75 mm, sides: 75 mm, rear: 75 mm, top: 20 mm | hull: front: 78-75 mm, sides: 70-40 mm, rear 55 mm, bottom: 20 and 13 mm, top: 20 mm turret: front: 75 mm, sides: 75 mm, rear: 75 mm, top: 20 mm |
| mainarmament | Ordnance OQF Mk IX/X 2 prd (40 mm), 67 - 93 rounds | Ordnance QF Mk I or IA 3-inch howitzer (76,2 mm) |
| secondaryarmament | 1 x Besa 7,92 mm (2925 - 3150 rounds) | 1 x Besa 7,92 mm (2925 - 3150 rounds) |
| weight (kg) | 26950 | 26800 |
| length (mm) | 5581 | 5715 |
| width (mm) | 2576 | 2576 |
| height (mm) | 2510 | 2370 |
| ground pressure (kg/cm2) | 1,12 | 1,11 |
| track centres (mm) | 2060 | 2305 |
| lenght track on ground (mm) | 3280 | 3280 |
| engine | 2 x AEC A183/184, 87 hp at 2000 rpm, 6750 cm3, 6 cyl, diesel, water cooled | 2 x Leyland E148/149 ( or E164/165 E170/171) , 95 hp at 2000 rpm, 6750 cm3, diesel, 6 cyl, water cooled, weight: 540 kg |
| transmission | 5 + 1 forward, 1 reverse | 5 + 1 forward, 1 reverse |
| fuel capacity (l) | 190 + 211 | 190 + 211 |
| range (road km/ off-road km) | 257 / 129 | 257 / 129 |
| speed (km/h) | 24 (15 off-road) | 24 (15 off-road) |
| number of links per track | 68 or 69 | 69 |
| trench crossing (mm) | 2120 | 2120 |
| vertical obstacle (mm) | 610 | 610 |
| fording (mm) | 900 | 900 |
| ground clearance (mm) | 400 | 400 |
| climbing ability (degrees) | 24 | 24 |
| manufacturer | Vulcan Foundry, Ruston & Hornby, John Fowler & Co, North British Locomotive Co, Harland and Wolff, Midland and Scottish Railway Co. |
